  13. Plug-In, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect

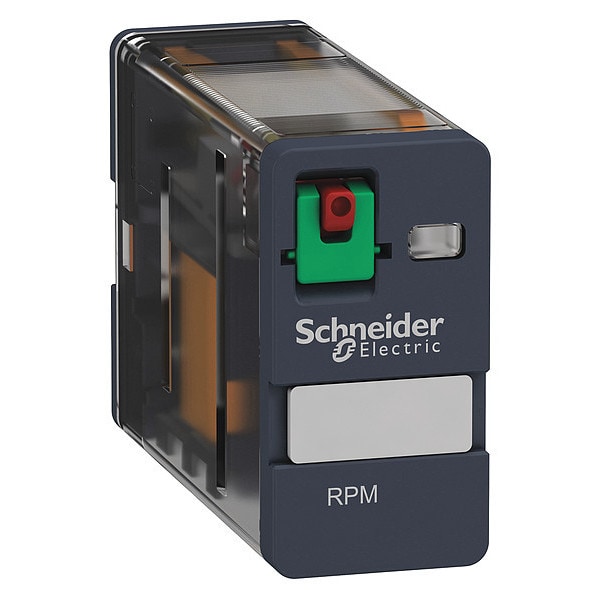

Schneider Electric Plug-In, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect RPM11B7 - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect

  • Mfr # RPM11B7

  • Zoro # G1819097

CAD Available
product price: $8.69
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM11B7
Zoro #
G1819097
UPC #
785901437857
Country of Origin
China

Dimensions

Overall Height - Relay
1.97 in
Body Depth
1.58 in
Overall Depth
1.86 in
Body Height
1.06 in
Body Width
0.55 in
Flat Pin Width
0.19 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Features
Plug In Protection Module to Protect Against Electrical Spikes
Contact Material
Silver Alloy
Power Consumption - Relay
1.6 VA
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
L
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Socket
Mfr. No. RPZF1
Status Indicator
Mechanical Flag
Input Voltage
26.4V AC
Maximum Switching Voltage
250V
Horsepower @ 120V AC
Not Rated
Push-To-Test Method
Lockable Push Test Button
Sealing
Enclosed
IP Rating
IP40
Horsepower @ 240V AC
Not Rated
Motor Rated
Not Rated - Not Rated
Maximum Operating Temperature
131 Degrees F
Series
Harmony(TM) RPM Series
Minimum Switching Current
10 mA
Power Consumption
1.6 VA
Weight
0.96 oz
Electrical Operating Durability
100,000
For Use With
Hard-Wired Logic Automated Systems
Pin Shape
Flat
Response Time
20 msec
Resistance Properties
Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced
Coil Resistance
177 ohm
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-40 Degrees F
Operating Time
20 ms at nominal voltage
Switching Voltage
250 V IEC
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Protection Category
RT I
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.19 in, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.58 in, Body Height 1.06 in, Body Width 0.55 in
