  13. Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector

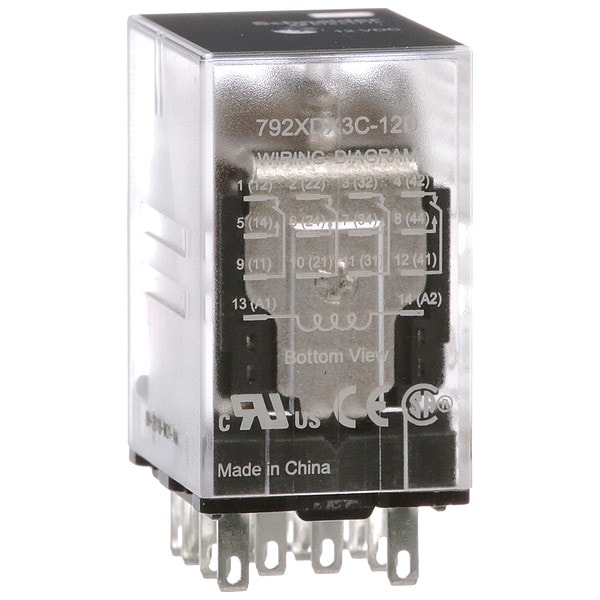

Schneider Electric Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector 792XDX3C-12D - main

Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector

  • Mfr # 792XDX3C-12D

  • Zoro # G0059221

product price: $12.79
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDX3C-12D
Zoro #
G0059221
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Width
0.83 in
Body Height
1.07 in
Body Depth
1.37 in
Overall Depth
1.61 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
Current Rating
3 A
Contact Form
4PDT
Contact Rating (AC)
1.00 A @ AC-1, 2.00 A @ AC-1, 3 A @ 120/240/277V
Contact Rating (DC)
1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V
Status Indicator
Mechanical Flag
Contact Material
Gold Plated Bifurcated Silver
Socket Code
G
Standards
CE Certified, CSA Certified, UL Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. 70-782E14, 70-461
Power Consumption - Relay
1.1 W
Electrical Operating Durability
100,000
IP Rating
IP40
Input Voltage
12V DC
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Operating Current
1 A AC-1 (NC Conforming to IEC), 1 A DC-1 (NC Conforming to IEC), 2 A AC-1 (NO Conforming to IEC), 2 A DC-1 (NO Conforming to IEC), 3 A at 120V AC (Conforming to UL), 3 A at 240/277V AC (Conforming to UL), 3 A at 30V DC (Conforming to UL)
Horsepower @ 120V AC
1/16 hp
Power Consumption
0.8 W
Response Time
25 msec
Weight
1.31 oz
Coil Resistance
160 ohm
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
Minimum Switching Current
3 mA
Mechanical Operating Durability
10,000,000
Maximum Switching Voltage
250V AC, 300V DC
Series
792 Series
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 240V AC
1 hp
Push-To-Test Method
No Test Button
For Use With
General Purpose Relay
Product Certifications
UL; CSA; CE
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
4 NO + 4 NC
Surge Withstand Duration
1.2/50µs
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Range
Legacy
Voltage Range
0.8...1.1 Un AC/DC
Power consumption in W
0.8 W DC
Motor Power HP
0.0625 hp 120 V AC
Shock Resistance
10 gn in operation; 30 gn not operating
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Connections Terminals
Faston connectors
Operating Time
25 ms; 20 ms at maximum rated voltage

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 1.00 A @ AC-1 (NC), 2.00 A @ AC-1 (NO), 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
