  13. Plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, 120V AC

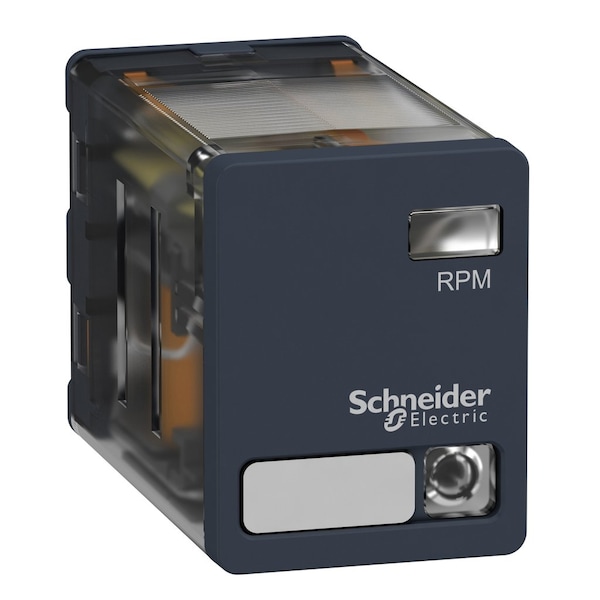

Schneider Electric Plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, 120V AC RPM23F7 - main

Plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, 120V AC

  • Mfr # RPM23F7

  • Zoro # G010839185

product price: $9.59
/ea
Sold in multiples of 10 for $95.90

Key Features

Coil Voltage
120V AC
Current Rating
15 A
Standards
CSA C22.2 No 14, UL 508, EN/IEC 61810-1
Dielectric Strength
1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Test Levels
level A group mounting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM23F7
Zoro #
G010839185
UPC #
-
Country of Origin
Canada

Details

Item
Plug-In Relay
Coil Voltage
120V AC
Current Rating
15 A
Standards
CSA C22.2 No 14, UL 508, EN/IEC 61810-1
Dielectric Strength
1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Test Levels
level A group mounting
Operating Rate
<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Ambient Air Temperature For Storage
-40-85°C
Ip Degree of Protection
IP40 conforming to EN/IEC 60529
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Device Presentation
complete product
Series Name
Power
Mechanical Durability
10000000 cycles
Shock Resistance
15 gnin operation, 30 gnnot operating
Rated Operational Voltage Limits
96...132 V AC
Load Current
15 A 250 V AC, 15 A 28 V DC
Ambient Air Temperature For Operation
-40-55°C
Device Short Name
RPM
Maximum Switching Voltage
250 V IEC
Average Resistance
4430 Ohm at 20°C +/- 15 %
Contacts Material
AgNi
Contacts Type And Composition
2 C/O
Minimum Switching Capacity
170 mW 10 mA, 17 V
Operating Position
any position
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Operating Time
20 ms at nominal voltage
Reset Time
20 ms at nominal voltage
Electrical Durability
100000 cycles resistive
Protection Category
RT I
Shape of Pin
flat
Control Type
without lockable test button
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Utilisation Coefficient
0.2
Pollution Degree
3
[Ithe] Conventional Enclosed Thermal Current
15 A -40-55°C
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Maximum Switching Capacity
3750 VA, 420 W
Average Coil Consumption In VA
1.1 60 Hz
Status Indicator
LED Indicator

Description

POWER RELAY 2 CO WITHOUT BUTTON WITH LED

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
