Schneider Electric

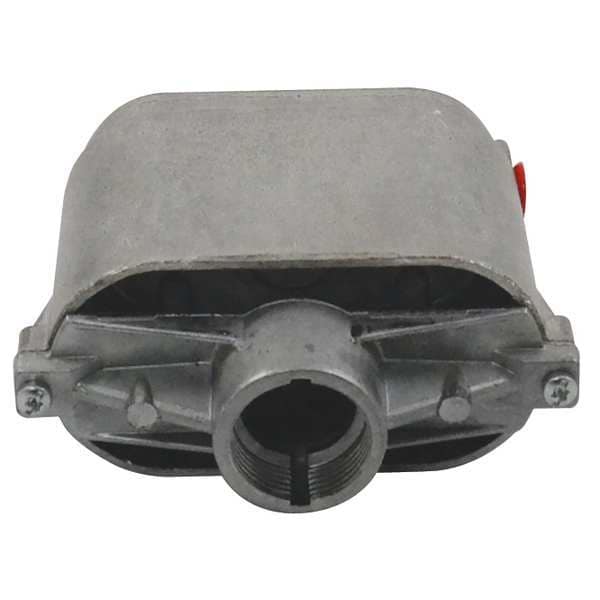

Pneumatic Actuator, 1/2 to 2", Valve
Mfr # MK-2690
Zoro # G0042266
product price: $88.29
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Fits Brand Schneider Electric
- Includes Actuator
- Product Type Pneumatic Valve Actuator
- Air Connection Size 1/8 in
- Effective Diaphragm Area 6 sq in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # MK-2690
- Zoro # G0042266
- Country of Origin United States
- Category Pneumatic Controls
Dimensions
| Air Connection Size | 1/8 in |
| Overall Width | 3 9/16 in |
| Compatible Valve Size | 1/2 in, 1 1/4 in |
| Overall Length | 5 in |
| Overall Depth | 2 1/4 in |
Details
| Item | Pneumatic Valve Actuator |
| Fits Brand | Schneider Electric |
| Includes | Actuator |
| Product Type | Pneumatic Valve Actuator |
| Effective Diaphragm Area | 6 sq in |
| Air Connection Gender | Female |
| Diaphragm Material | Neoprene |
| Air Connection Type | NPT |
| Operating Temperature - Minimum | -20 Degrees F |
| Operating Temperature - Maximum | 220 Degrees F |
| Return Action | Spring Return |
| Stroke | 1/2 in |
| Housing Material | Die Cast Aluminum |
| Installation Orientation | Vertical |
Description
Pneumatic Valve Actuator, Air Connection Gender Female, Air Connection Size 1/8 in, Air Connection Type NPT, Compatible Valve Size 1/2 in, 1 1/4 in, Diaphragm Material Neoprene, Effective Diaphragm Area 6 sq in, Housing Material Die Cast Aluminum, Installation Orientation Vertical, Operating Temperature - Maximum 220 Degrees F, Operating Temperature - Minimum -20 Degrees F, Overall Depth 2 1/4 in, Overall Length 5 in
Restrictions
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
