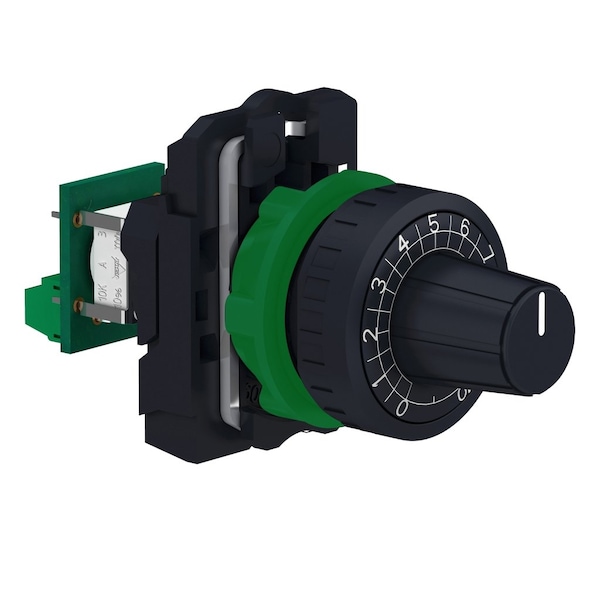

Schneider Electric Potentiometer, Standard, 22 mm XB5AD912R4K7 - main

Potentiometer, Standard, 22 mm

  • Mfr # XB5AD912R4K7

  • Zoro # G0195206

product price:  $45.15
/ea

Key Features

Watts
1 W
Ohms
4,700
Max. Voltage
30V AC, 42V DC
NEMA Rating
13, 4X
Size
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB5AD912R4K7
Zoro #
G0195206
UPC #
785901536291
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Height
42 mm
Cad Overall Width
30 mm
Mounting Diameter
22 mm
Cad Overall Depth
82 mm
Panel Cutout Diameter
22 mm
Overall Width
1.18 in
Overall Height
1.85 in
Overall Depth
3.23 in

Details

Item
Potentiometer
Watts
1 W
Ohms
4,700
Max. Voltage
30V AC, 42V DC
NEMA Rating
13, 4X
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class II IEC 60536
Operator Profile
knurled knob, with white)
Colour Of Marking
white
Bezel Material
dark grey plastic
Rated Power In W
1 W 70°C
Material
cermet
Device Short Name
XB5
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
[Us] Rated Supply Voltage
<= 30 V AC || <= 42 V DC
Standards
UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1
Ohmic Value
4700 Ohm
Main Group
potentiometer
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
standard
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
Ø 6 mm shaft
Potentiometer Characteristic
linear
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Precision Of Internal Conversion Resistor
-0.1
Device Presentation
complete product
Product Certifications
BV || CSA || UL Listed
Ik Degree Of Protection
IK03 IEC 50102
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Group Of Product
potentiometer knurled knob
Mechanical Durability
50000 cycles
Product Or Component Type
potentiometer
Ip Degree Of Protection
IP66 IEC 60529
Rated Supply Voltage
Less than or Equal to 30 V AC; Less than or Equal to 42 V DC
Resistance Properties
Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Voltage Rating - Maximum
42 V DC
IP Rating
IP66
Resistance Rating
4,700 ohm
Power Rating
1 W
NEMA Enclosure Rating
13, 4X
Knob Style
Standard
Series
XB5
Operating Temperature - Minimum
-40 Degrees F

Description

Potentiometer, Watts 1 W, Ohms 4,700, Max. Voltage 30V AC, 42V DC, NEMA Rating 13, 4X, 22 mm Size
