  10. /
  11. Power plug-in relay, 15 A, 1 CO, with LE, 230V AC Coil Volts, 1 C/O
Shop All Plug-In Relays
Schneider Electric

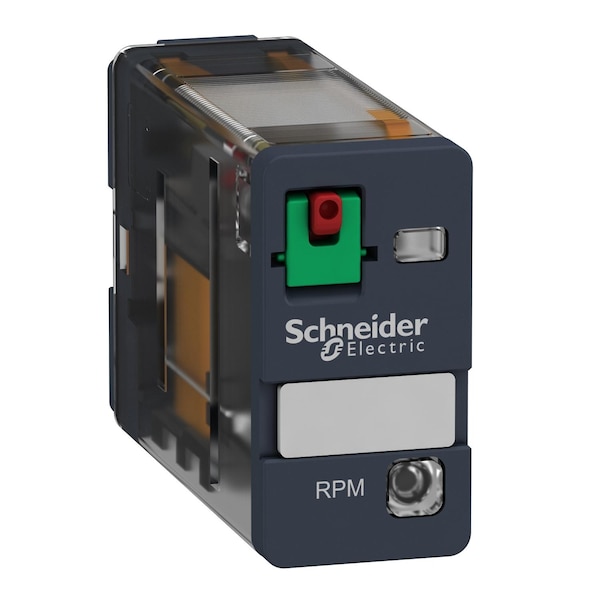

Power plug-in relay, 15 A, 1 CO, with LE, 230V AC Coil Volts, 1 C/O

product price: $7.19
/ea
Sold in multiples of 10 for $71.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 230V AC
  • AC Contact Rating - Relay 15A @ 250V AC
  • DC Contact Rating - Relay 15A @ 28V DC
  • Contact Form - Relay 1 C/O
  • Power Consumption - Relay 1.6 VA
See all product information

Product Information

Details

Item Power plug-in relay,15 A,1 CO,with LE
Coil Volts 230V AC
AC Contact Rating - Relay 15A @ 250V AC
DC Contact Rating - Relay 15A @ 28V DC
Contact Form - Relay 1 C/O
Power Consumption - Relay 1.6 VA
Contact Material AgNi
Features Lockable Test Button; Status LED
Standards CSA C22.2 No 14; EN/IEC 61810-1 508; EAC
Current Rating 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC
Operating Time 20 ms at nominal voltage
Protection Category RT I
Switching Voltage 250 V IEC
Switching Power Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Series RPM; Power
Dielectric Strength 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced
Operating Temp. Range -40-55°C
Coil Resistance 16270 Ohm
Pin Shape flat
[Uc] Control Circuit Voltage 230 V AC 50/60 Hz
Device Presentation complete product
[Ithe] Conventional Enclosed Thermal Current 15 A -40-55°C
Rated Operational Voltage Limits 184...253 V AC
Minimum Switching Capacity 170 mW 10 mA, 17 V
Control Type lockable test button
Electrical Durability 100000 cycles resistive
[Ie] Rated Operational Current 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
[Uimp] Rated Impulse Withstand Voltage 4 kV 1.2/50µs
Average Resistance 16270 Ohm at 20°C +/- 15 %
Pollution Degree 3
Drop-Out Voltage Threshold >= 0.15 Uc AC
Load Current 15 A 250 V AC, 15 A 28 V DC
Average Coil Consumption In VA 1.6 60 Hz
Ambient Air Temperature For Storage -40-85°C
Test Levels level A group mounting
Series Name Power
Ip Degree of Protection IP40 conforming to IEC 60529
Device Short Name RPM
Operating Rate <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical Durability 10000000 cycles
Ambient Air Temperature For Operation -40-55°C
Utilisation Coefficient 0.2
Operating Position any position
Maximum Switching Capacity 3750 VA, 420 W
Status Led with
Range of Product Harmony Electromechanical Relays
[Ui] Rated Insulation Voltage 250 V IEC, 300 V CSA, 300 V UL
Vibration Resistance 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Product or Component Type plug-in relay
Shock Resistance 15 gnin operation, 30 gnnot operating

Description

This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
