  7. Power plug-in relay, 15 A, 3 CO, with LE, 230V AC Coil Volts, 3 C/O

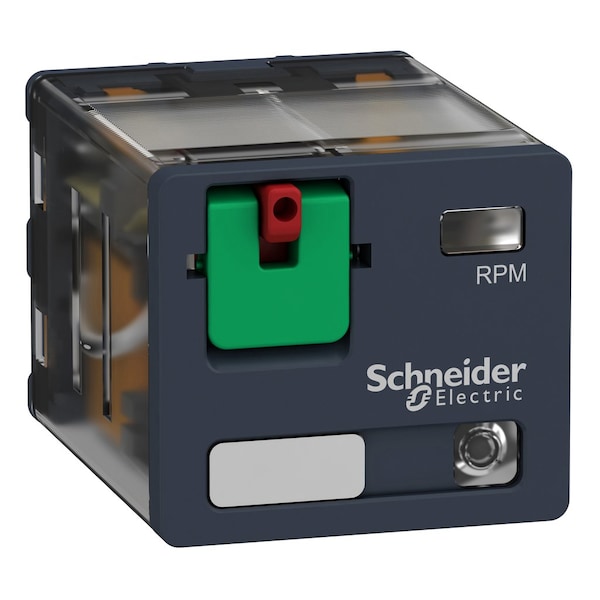

Schneider Electric Power plug-in relay, 15 A, 3 CO, with LE, 230V AC Coil Volts, 3 C/O RPM32P7 - main
Shop SCHNEIDER ELECTRIC

Power plug-in relay, 15 A, 3 CO, with LE, 230V AC Coil Volts, 3 C/O

  • Mfr # RPM32P7

  • Zoro # G200905638

product price:  $11.38
/ea
Sold in multiples of 10 for $113.80

Key Features

Coil Voltage
230V AC
Current Rating
15 A
Contact Rating (AC)
15A @ 250V AC
Contact Rating (DC)
15A @ 28V DC
Standards
CSA C22.2 No 14; EN/IEC 61810-1; UL 508; EAC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM32P7
Zoro #
G200905638
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
230V AC
Current Rating
15 A
Contact Rating (AC)
15A @ 250V AC
Contact Rating (DC)
15A @ 28V DC
Standards
CSA C22.2 No 14; EN/IEC 61810-1; UL 508; EAC
Features
Lockable Test Button; Status LED
Contact Material
AgNi
Power Consumption - Relay
1.7 VA
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Operating Temp. Range
-40-55°C
Protection Category
RT I
Operating Time
20 ms at nominal voltage
Coil Resistance
9600 Ohm
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Series
RPM; Power
Switching Voltage
250 V IEC
Pin Shape
flat
Average Coil Consumption In VA
1.7 60 Hz
Minimum Switching Capacity
170 mW 10 mA, 17 V
Pollution Degree
3
Device Presentation
complete product
Operating Rate
<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Ambient Air Temperature For Storage
-40-85°C
Load Current
15 A 250 V AC, 15 A 28 V DC
Shock Resistance
15 gnin operation, 30 gnnot operating
Electrical Durability
100000 cycles resistive
Control Type
lockable test button
Ambient Air Temperature For Operation
-40-55°C
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Ip Degree of Protection
IP40 conforming to IEC 60529
Rated Operational Voltage Limits
184...253 V AC
Utilisation Coefficient
0.2
Operating Position
any position
Device Short Name
RPM
Average Resistance
9600 Ohm at 20°C +/- 15 %
[Ithe] Conventional Enclosed Thermal Current
15 A -40-55°C
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Mechanical Durability
10000000 cycles
Series Name
Power
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Maximum Switching Capacity
3750 VA, 420 W
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Test Levels
level A group mounting
Status Indicator
LED Indicator

Description

Power plug-in relay,15 A,3 CO,with LE
