- Item

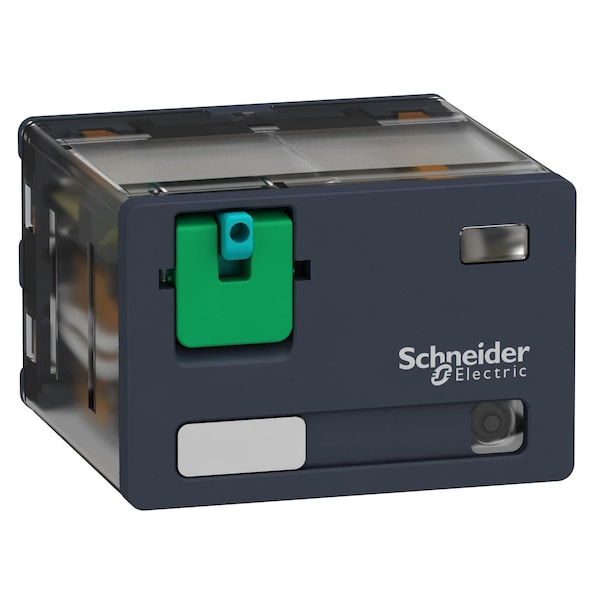

- Power plug-in relay,15 A,4 CO,with LE
- Coil Voltage
- 12V DC
- Current Rating
- 15 A
- Contact Rating (AC)
- 15 A @ 277V AC, 15 A @ 250V AC (NO), 7.5 A @ 250V AC (NC)
- Contact Rating (DC)
- 15A @ 28V DC
- Standards
- CSA C22.2 No 14; EN/IEC 61810-1 508; EAC
- Features
- Lockable Test Button; Status LED
- Power Consumption - Relay
- 1.6 W
- Contact Material
- AgNi
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
- Operating Time
- 20 ms at nominal voltage
- Switching Voltage
- 250 V IEC
- Coil Resistance
- 75.8 Ohm
- Protection Category
- RT I
- Pin Shape
- flat
- Series
- RPM; Power
- Switching Power
- Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
- Operating Temp. Range
- -40-55°C
- Rated Operational Voltage Limits
- 9.6...13.2 V DC
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Series Name
- Power
- Maximum Switching Capacity
- 3750 VA, 420 W
- Control Type
- lockable test button
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Pollution Degree
- 3
- Electrical Durability
- 100000 cycles resistive
- Device Presentation
- complete product
- Shock Resistance
- 15 gnin operation, 30 gnnot operating
- Device Short Name
- RPM
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Operating Rate
- <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
- Mechanical Durability
- 10000000 cycles
- [Ithe] Conventional Enclosed Thermal Current
- 15 A -40-55°C
- Average Resistance
- 75.8 Ohm at 20°C +/- 10 %
- Test Levels
- level A group mounting
- Ambient Air Temperature For Operation
- -40-55°C
- Operating Position
- any position
- Ip Degree of Protection
- IP40 conforming to IEC 60529
- Utilisation Coefficient
- 0.2
- Load Current
- 15 A 250 V AC, 15 A 28 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50µs
- Ambient Air Temperature For Storage
- -40-85°C
- Status Indicator
- LED Indicator
- Mounting Style
- Plug In
- Contact Form
- 4PDT
- Number of Pins
- 14
- Base Shape
- Square
- Electrical Connection
- Quick Connect
