  15. Push Bttn Cntrl Statn, 1NO/1NC, Mshrm Head

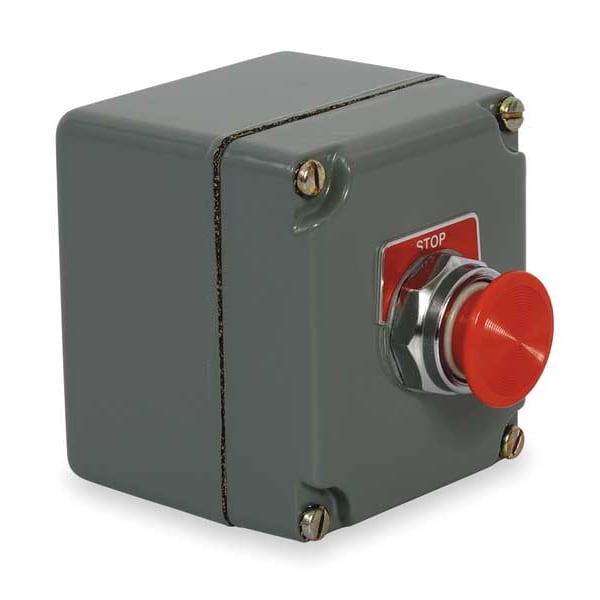

Schneider Electric Push Bttn Cntrl Statn, 1NO/1NC, Mshrm Head 9001KYK14 - main

Push Bttn Cntrl Statn, 1NO/1NC, Mshrm Head

  • Mfr # 9001KYK14

  • Zoro # G0248832

product price: $260.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Number of Gangs
1
Legend
Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYK14
Zoro #
G0248832
UPC #
785901513384
Country of Origin
Mexico

Dimensions

Size
30 mm
Depth
4 in
Height
3.53 in
Width
3.58 in
Panel Cutout Diameter
30 mm
Overall Depth
3.53 in
Overall Height
4 in
Manufacturer Warranty Length
18 mo
Hub Size - Maximum
3/4 in
Overall Width
3.62 in

Details

Item
Control Station
Contact Form
1NO/1NC
Number of Gangs
1
Legend
Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
1, 13, 3, 4
Series
9001K
Hub Style
Dead-End
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
Standards
CE, CSA, UL Listed
For Use With
indoor/outdoor
Action
Momentary
Mechanical Interlock
No
Hub
3/4 in NPT
Mounting
Wall
NEMA Contact Rating Designation
A600/Q600
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Enclosure Color
Gray
Enclosure Material
Zinc
Operator Color
Red
IP Rating
IP66
Number of Speeds
1
Mounting Style
Surface
Terminal Connection
screw-clamp terminals
Product Or Component Type
Complete control station
Provided Equipment
Contact block; Legend plate
Control Station Composition
1 push-button 1 NO + 1 NC STOP
NEMA Degree Of Protection
NEMA 3/4/13
Enclosure/Cubicle Description
Surface mounting
Contact Block Name
KA1
Rated Operational Current AC
10 A
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
Push Button
Product Type
Control Station
NEMA Enclosure Rating
13, 3, 4
Includes Mechanical Interlock
No Mechanical Interlock Included.
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Stop, Type of Operator Push Button with Mushroom Head, Action Momentary, Operator Color Red, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, 13, 3, 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.53 in, Width 3.58 in, Depth 4 in, Enclosure Material Zinc, Enclosure Color Gray
