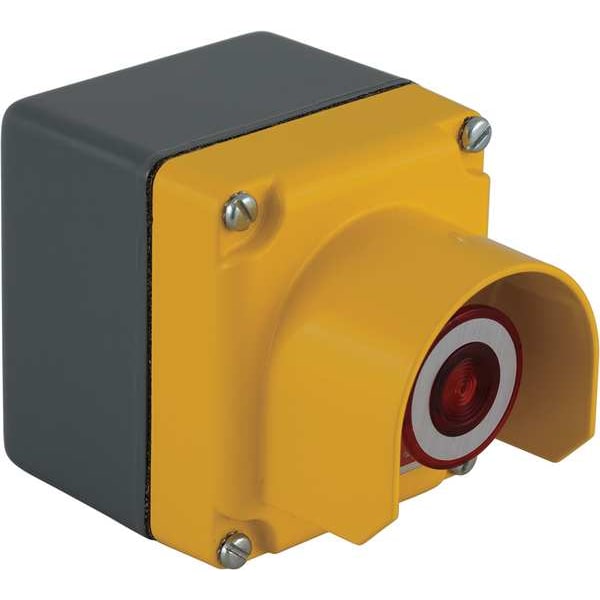

Schneider Electric Push Buttn Cntrol Station, 1NC, Mshrm Head 9001KYG1Y1 - main

Push Buttn Cntrol Station, 1NC, Mshrm Head

  • Mfr # 9001KYG1Y1

  • Zoro # G3126697

product price: $329.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NC
Number of Gangs
1
Legend
Emergency Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYG1Y1
Zoro #
G3126697
UPC #
785901664956
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
3.63 in
Depth
5.5 in
Width
4 in
Manufacturer Warranty Length
18 mo
Hub Size - Maximum
1 in
Overall Height
3.63 in
Overall Depth
5.5 in
Overall Width
4 in
Panel Cutout Diameter
30 mm

Details

Item
Control Station
Contact Form
1NC
Number of Gangs
1
Legend
Emergency Stop
Type of Operator
Push Button with Mushroom Head
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
4
Series
9001K
Hub Style
Dead-End
Standards
CSA, UL Listed
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
Action
Maintained
Mechanical Interlock
No
Hub
3/4 in NPT
Enclosure Material
Zinc
Mounting
Wall
IP Rating
IP66
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation
A600/Q600
Enclosure Color
Yellow
Operator Color
Red
Number of Speeds
1
Product Type
Control Station
Operator Configuration
Mushroom Head Push Button
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Maintained Action Release
Push/Pull
NEMA Enclosure Rating
4
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mechanical Interlock
No Mechanical Interlock Included.
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Emergency Stop, Type of Operator Push Button with Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NC, Mechanical Interlock No, NEMA Rating 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.63 in, Width 4 in, Depth 5.5 in, Enclosure Material Zinc, Enclosure Color Yellow, Standards CSA, UL Listed
