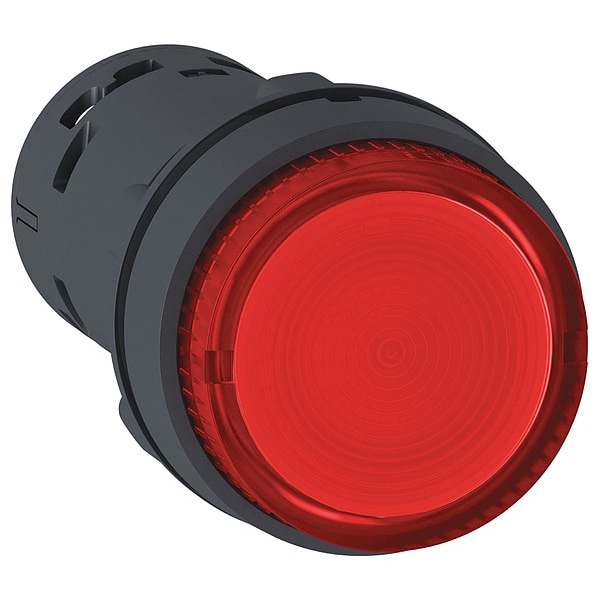

Push-button, 22 mm, Red

Push-button, 22 mm, Red

Mfr # XB7NW34G1
Zoro # G3458376

$59.79

Key Features

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Panel Cutout Diameter

22 mm

Head Color

Red

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB7NW34G1

Zoro #

G3458376

UPC #

785901219040

Country of Origin

Indonesia

Dimensions

Panel Cutout Diameter

22 mm

Size

22 mm

Manufacturer Warranty Length

18 mo

Overall Height

1.14 in

Overall Depth

2.26 in

Overall Width

1.14 in

Mounting Diameter

22 mm

Cad Overall Depth

57.5 mm

Cad Overall Width

29 mm

Cad Overall Height

29 mm

Details

Item

Push Button Operator

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Head Color

Red

Head Material

Plastic

Terminal Connection

Screw Clamp

Standards

Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508

Lamp Module Voltage

120V AC

Legend/Background Color

No Legend

Lamp Voltage

120V AC

IP Rating

IP65

Number of Operators

Lamp Type

LED

NEMA Rating

Type of Operator

Extended Button

Color

Red

Features

Visually Distinct at a Distance

Series

XB7

NEMA Enclosure Rating

12, 3, 4

Operating Temperature - Minimum

-13 Degrees F

Hazardous Location Specification

Not Rated

Lamp Voltage - Maximum

120 V AC

Bezel Material

Plastic

Operating Temperature - Maximum

158 Degrees F

Product Type

Push Button Operators

Number of Indicator Lights

Resistance Properties

Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Lamp Module Type

Full Voltage

Operator Material

Plastic

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Contact Operation

slow-break

Electromagnetic Emission

class B EN 55011

Shape Of Screw Head

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Bulb Base

integral LED

Device Presentation

monolithic product

Ambient Air Temperature For Operation

-25-70Â°C

Supply Voltage Limits

100-132 V AC

Signalling Type

steady

[Ui] Rated Insulation Voltage

250 V 3)EN/IEC 60947-1

Device Short Name

XB7

Ip Degree Of Protection

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

Electrical Reliability

Î› <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4

Tightening Torque

0.8-1.2 N.m EN 60947-1

Product Or Component Type

illuminated push-button

Terminals Description Iso NÂ°1

(13-14)NO

Fixing Center

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

[Us] Rated Supply Voltage

120 V AC 50/60 Hz

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÂ² without cable end EN/IEC 60947-1

Shock Resistance

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

Current Consumption

12 to 17 mA

Fixing Mode

fixing nut beneath head 2-2.4 N.m

[Uimp] Rated Impulse Withstand Voltage

4 kV EN/IEC 60947-1

Operator Profile

red projecting, unmarked

Electrical Durability

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Shape Of Signaling Unit Head

round

Contacts Type And Composition

1 NO

Nema Degree Of Protection

NEMA 12 UL 50 E

Mechanical Durability

300000 cycles

Ambient Air Temperature For Storage

-40-70Â°C

Product Certifications

CCC || GOST

Electrical Shock Protection Class

class II IEC 61140

[Ie] Rated Operational Current

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

Light Source

LED

Short-Circuit Protection

4 A cartridge fuse gG EN/IEC 60947-5-1

Device Mounting

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Positive Opening

with (only NO)

Protective Treatment

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 12, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend, Standards Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508, Features Visually Distinct at a Distance

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
