Shop SCHNEIDER ELECTRIC

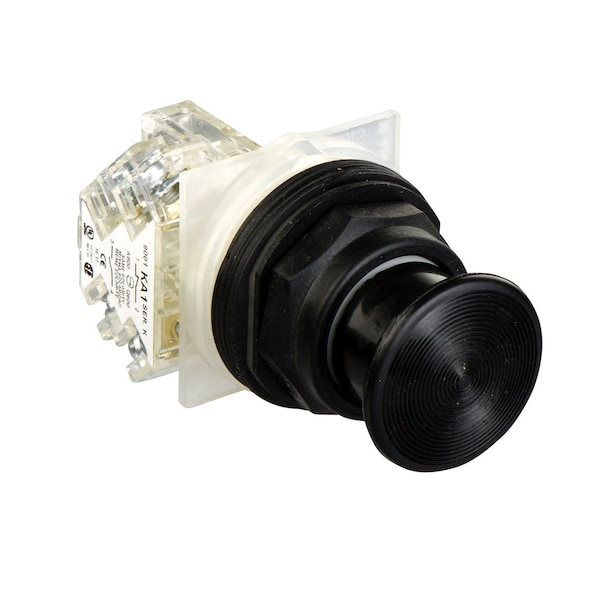

Push-button, Harmony 9001SK, plastic, mushroom 35mm, black, 30mm, spring return, 1 C/O

  • Mfr # 9001SKR24BH13

  • Zoro # G3301310

product price:
$
153.36
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001SKR24BH13
Zoro #
G3301310
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
35 mm
Size
30 mm
Cad Overall Height
45 mm
Cad Overall Depth
69 mm
Mounting Diameter
30 mm
Cad Overall Width
48 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
Bezel Material
plastic
Overvoltage Category
class II IEC 61140
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Shape Of Screw Head
cross slotted
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10 A
Device Short Name
9001SK
Product Certifications
UL 508 || NEMA
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Protective Treatment
TC
Cap/Operator Or Lens Colour
black
Shock Resistance
50 gn IEC 60068-2-27
Product Or Component Type
push-button
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 6 kA 125 V DC-13, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
Type Of Operator
spring return
Operator Profile
black mushroom Ø 35 mm, unmarked, mushroom Ø 35 mm
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Operating Position
any position
Compatibility Code
9001SK
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Ambient Air Temperature For Operation
-25-70°C
Positive Opening
without
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Operator Additional Information
screw-on plastic with set screw
Contacts Type And Composition
1 C/O
Mechanical Durability
5000000 cycles
Contacts Material
silver alloy contacts
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Shape Of Signaling Unit Head
round
Device Presentation
complete product
Range of Product
Harmony 9001SK

Description

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
