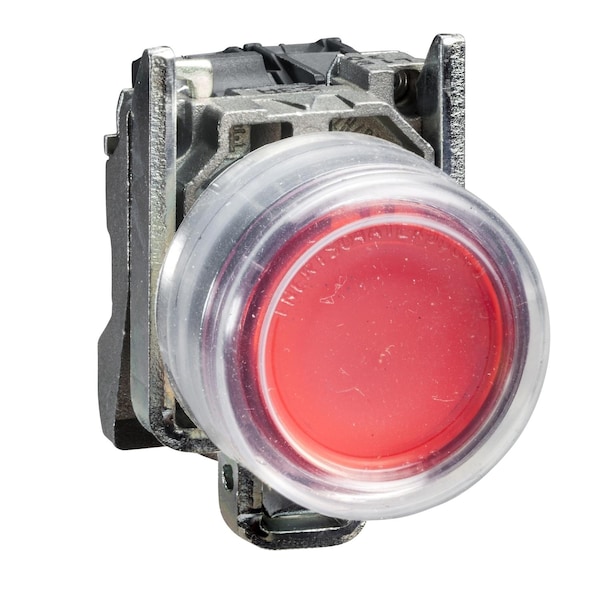

  8. Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked, 1NC
Schneider Electric Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked, 1NC XB4BP42 - main

Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, booted, unmarked, 1NC

  • Mfr # XB4BP42

  • Zoro # G4060129

product price:  $51.55
/ea

Key Features

Height
47 mm
Width
30 mm
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
Bezel Material
chromium plated metal
Depth
61 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB4BP42
Zoro #
G4060129
UPC #
-
Country of Origin
France

Dimensions

Height
47 mm
Width
30 mm
Depth
61 mm
Mounting Diameter
22 mm

Details

Item
Push button,metal,projecting,red,022
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
Bezel Material
chromium plated metal
Ik Degree Of Protection
IK06 IEC 50102
Operator Additional Information
clear boot
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Device Presentation
complete product
Head Type
standard
Protective Treatment
TH
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Operator Profile
red projecting, unmarked
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Contacts Material
silver alloy (Ag/Ni)
Device Short Name
XB4
Terminals Description Iso N°1
(21-22)NC
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Positive Opening
with EN/IEC 60947-5-1 appendix K
Product Compatibility
not compatible with legend holder
Fixing Collar Material
zamak
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Shape Of Signaling Unit Head
round
Type Of Operator
spring return
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Contacts Usage
standard contacts
Contact Operation
slow-break
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Overvoltage Category
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
10000000 cycles
Contacts Type And Composition
1 NC
Product Certifications
CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL
Ambient Air Temperature For Storage
-40-70°C
Tightening Torque
0.8-1.2 N.m EN 60947-1
Operating Force
3.5 N NC changing electrical state
Product Or Component Type
push-button
Range of Product
Harmony XB4

Description

Push button,metal,projecting,red,022
