Item

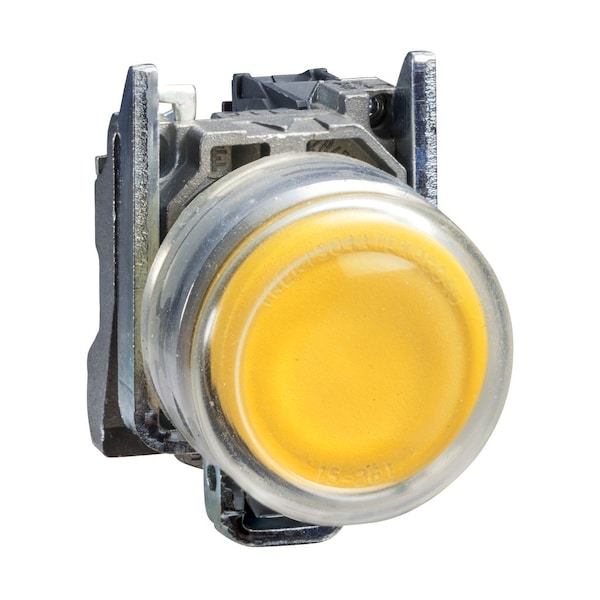

Push button,metal,projecting,yellow,
Bezel Material
chromium plated metal
Standards
CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Additional Information
clear boot
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Contacts Type And Composition
1 NO
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Contact Operation
slow-break
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Fixing Collar Material
zamak
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operator Profile
yellow projecting, unmarked
Product Compatibility
not compatible with legend holder
Shape Of Signaling Unit Head
round
Product Certifications
UL Listed || DNV || CSA || LROS (Lloyds register of shipping) || GL || BV
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Ik Degree Of Protection
IK06 IEC 50102
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Type Of Operator
spring return
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Presentation
complete product
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Contacts Usage
standard contacts
Terminals Description Iso N°1
(13-14)NO
Mechanical Durability
10000000 cycles
Product Or Component Type
push-button
Overvoltage Category
class I IEC 60536
Contacts Material
silver alloy (Ag/Ni)
Ambient Air Temperature For Storage
-40-70°C
Operating Force
3.8 N NO changing electrical state
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Range of Product
Harmony XB4
