  15. Push Button Operator, 16 mm, 1NC, Black

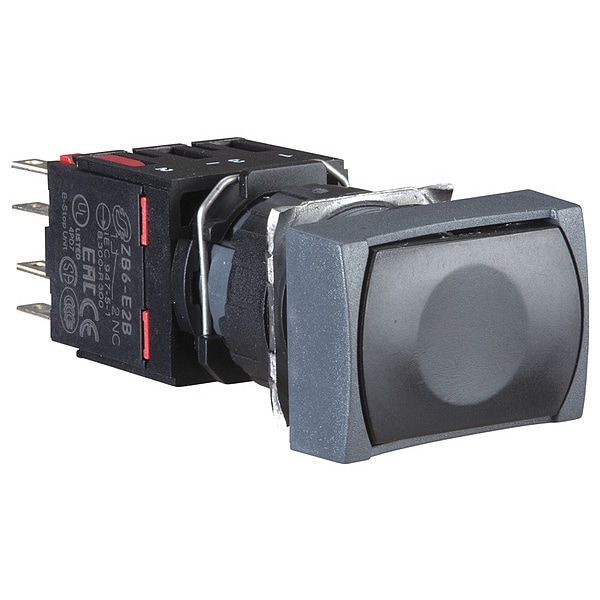

Schneider Electric Push Button Operator, 16 mm, 1NC, Black XB6DA22B - main

Push Button Operator, 16 mm, 1NC, Black

  • Mfr # XB6DA22B

  • Zoro # G3463005

product price: $21.69
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6DA22B
Zoro #
G3463005
UPC #
785901357377
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Depth
2.24 in
Overall Height
0.71 in
Manufacturer Warranty Length
18 mo
Overall Width
0.94 in
Cad Overall Height
18 mm
Cad Overall Depth
57 mm
Cad Overall Width
24 mm
Mounting Diameter
16 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL Listed, WEEE
Features
Circularity Profile, Mercury Free, Toxic Heavy Metal Free
Series
XB6
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Color
Black
Contact Form
1NC
NEMA Rating
13, 4, 4X
Number of Operators
1
IP Rating
IP65
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
Type of Operator
Rectangular Flush Button
Material
Plastic
Bezel Material
Plastic
Basic Material
Metal
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Bezel
Plastic
Product Type
Push Button Operators
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
2.00 x 10^6
Operator Voltage Rating - Maximum
250 V AC/DC
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Operator Material
Plastic
NEMA Enclosure Rating
13, 4, 4X
Device Short Name
XB6
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
Contact Operation
slow-break
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Short-Circuit Protection
6 A cartridge fuse gG
Ip Degree Of Protection
IP65 IEC 60529
Electrical Shock Protection Class
class II IEC 61140
Operating Position
any position
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Terminals Description Iso N°1
(21-22)NC
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operating Travel
2 mm NC changing electrical state) || 3.5 mm total travel)
Product Certifications
GOST || CCC || UL || CSA
Mechanical Durability
2000000 cycles
Product Or Component Type
complete push-button
Operator Profile
black flush, unmarked
Protective Treatment
TC
Shape Of Signaling Unit Head
rectangular
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Contacts Material
silver alloy (Ag/Ni)
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Contacts Type And Composition
1 NC
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Positive Opening
with EN/IEC 60947-5-1 appendix K
Operating Force
4.5 N NC changing electrical state

Description

Flush Push Button Operator, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Plastic, Color Black, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Standards CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL Listed, WEEE
