  15. Push Button Operator, 16 mm, 1NO/1NC, Red

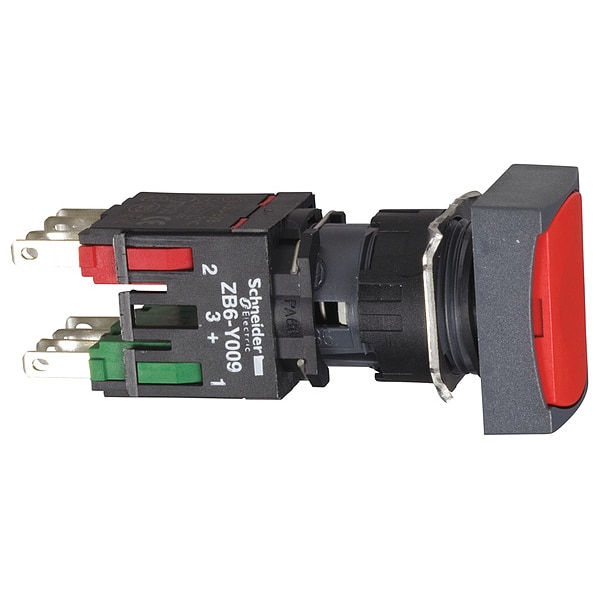

Schneider Electric Push Button Operator, 16 mm, 1NO/1NC, Red XB6DA45B - main

Push Button Operator, 16 mm, 1NO/1NC, Red

  • Mfr # XB6DA45B

  • Zoro # G3461964

product price: $34.39
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6DA45B
Zoro #
G3461964
UPC #
785901357407
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Width
0.94 in
Overall Height
0.71 in
Overall Depth
2.24 in
Manufacturer Warranty Length
18 mo
Cad Overall Height
18 mm
Mounting Diameter
16 mm
Cad Overall Depth
57 mm
Cad Overall Width
24 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL Listed, WEEE
Features
Circularity Profile, Mercury Free, Toxic Heavy Metal Free
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
NEMA Rating
13, 4, 4X
Number of Operators
1
IP Rating
IP65
Type of Operator
Rectangular Flush Button
Bezel Material
Plastic
Material
Plastic
Color
Red
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Bezel
Plastic
Contact Form
1NO/1NC
Series
XB6
Basic Material
Metal
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
Product Type
Push Button Operators
NEMA Enclosure Rating
13, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Operator Material
Plastic
Operator Voltage Rating - Maximum
250 V AC/DC
Mechanical Operating Durability
2.00 x 10^6
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Operating Travel
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TC
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Electrical Shock Protection Class
class II IEC 61140
Operating Force
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Operating Position
any position
Operator Profile
red flush, unmarked
Ip Degree Of Protection
IP65 IEC 60529
Device Short Name
XB6
Contacts Material
silver alloy (Ag/Ni)
Contacts Type And Composition
1 NO + 1 NC
Shape Of Signaling Unit Head
rectangular
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type
complete push-button
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
GOST || CCC || CSA || UL
Positive Opening
with EN/IEC 60947-5-1 appendix K
Mechanical Durability
2000000 cycles
Short-Circuit Protection
6 A cartridge fuse gG
Contact Operation
slow-break

Description

Flush Push Button Operator, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Red, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Standards CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL Listed, WEEE

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
