  15. Push Button operator, 22 mm, Blue

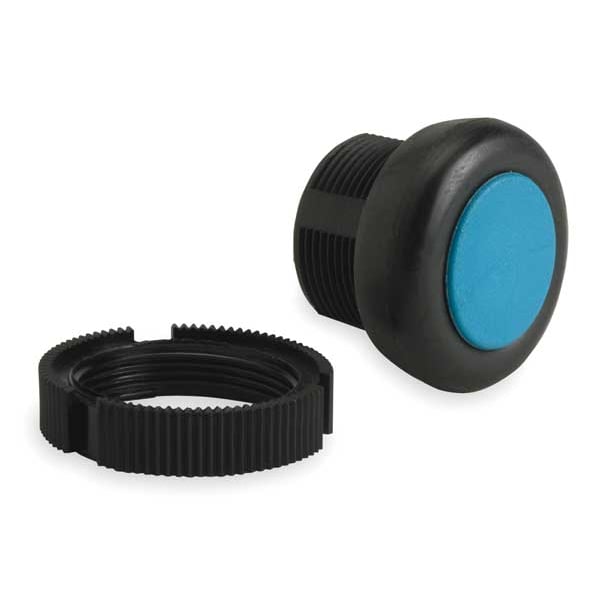

Schneider Electric Push Button operator, 22 mm, Blue XACA9416 - main

Push Button operator, 22 mm, Blue

  • Mfr # XACA9416

  • Zoro # G9087906

product price: $8.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA9416
Zoro #
G9087906
UPC #
785901645184
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Blue
Head Material
Plastic
Standards
Class II IEC 61140, CSA C22.2 No.14, EN 50102, EN/IEC 60204-32, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, REACH Free of SVHC, RoHS, UL 508
Color
Blue
Type of Operator
Booted Button
IP Rating
IP65
Basic Material
Plastic
Bezel Material
Plastic
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Number of Operators
1
Series
XAC
Operator Additional Information
booted
Ip Degree Of Protection
IP65 conforming to IEC 60529
Ik Degree Of Protection
IK08 EN 50102
Ambient Air Temperature For Storage
-40-70°C
Mounting Location
front of enclosure
Component Name
XACA
Product Compatibility
XACA..
Shock Resistance
100 gn IEC 60068-2-27
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Product Or Component Type
head for push-button
Marking
unmarked
Ambient Air Temperature For Operation
-25-70°C
Cap/Operator Or Lens Colour
blue
Overvoltage Category
class II IEC 61140
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 4, 4X, 5
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Booted Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Blue, IP Rating IP65, Legend Not Applicable, Standards Class II IEC 61140, CSA C22.2 No.14, EN 50102, EN/IEC 60204-32, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, REACH Free of SVHC, RoHS, UL 508, Features Visually Distinct at a Distance, Snap-Fit Assembly
