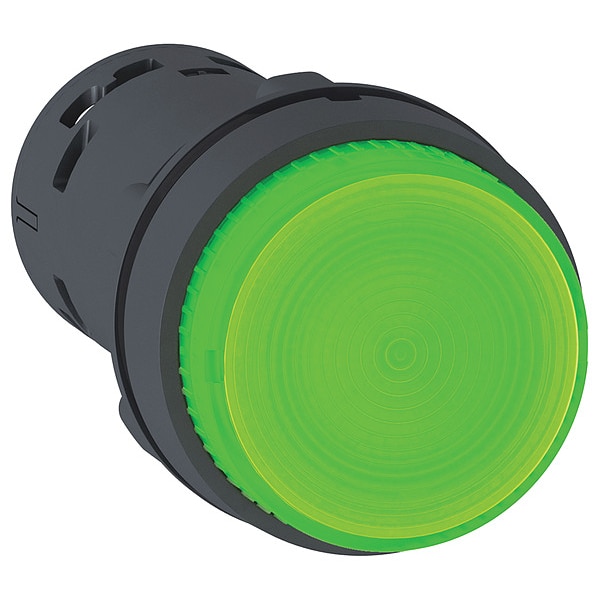

Push Button Operator, 22 mm, Green

Push Button Operator, 22 mm, Green

Mfr # XB7NW33M1
Zoro # G3461228

$60.69

Key Features

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Panel Cutout Diameter

22 mm

Head Color

Green

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB7NW33M1

Zoro #

G3461228

UPC #

785901531913

Country of Origin

Indonesia

Dimensions

Panel Cutout Diameter

22 mm

Size

22 mm

Cad Overall Width

29 mm

Cad Overall Depth

57.5 mm

Cad Overall Height

29 mm

Mounting Diameter

22 mm

Overall Height

1.14 in

Manufacturer Warranty Length

18 mo

Overall Width

1.14 in

Overall Depth

2.26 in

Details

Item

Push Button Operator

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Head Color

Green

Head Material

Plastic

Terminal Connection

Screw Clamp

Standards

Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508

Bezel Material

Plastic

Number of Operators

Lamp Module Voltage

230V AC

IP Rating

IP65

Color

Green

Legend/Background Color

No Legend

NEMA Rating

Lamp Voltage

230V AC

Lamp Module Type

Full Voltage

Lamp Type

LED

Features

Snap-Fit Assembly, Secure Connection Screws, Low Load Electrical Contact

Series

XB7

Electrical Shock Protection Class

class II IEC 61140

Signalling Type

steady

Protective Treatment

Electrical Durability

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability

Λ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4

Mechanical Durability

300000 cycles

Electromagnetic Emission

class B EN 55011

Shape Of Signaling Unit Head

round

Shape Of Screw Head

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Tightening Torque

0.8-1.2 N.m EN 60947-1

Terminals Description Iso N°1

(13-14)NO

Shock Resistance

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

Positive Opening

with (only NO)

Contacts Type And Composition

1 NO

Device Short Name

XB7

Supply Voltage Limits

195-264 V AC

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage

4 kV EN/IEC 60947-1

Nema Degree Of Protection

NEMA 12 UL 50 E

Ip Degree Of Protection

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

Light Source

LED

Device Mounting

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Contact Operation

slow-break

Type Of Operator

spring return

Ambient Air Temperature For Operation

-25-70°C

Short-Circuit Protection

4 A cartridge fuse gG EN/IEC 60947-5-1

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

[Us] Rated Supply Voltage

230 V AC 50/60 Hz

Bulb Base

integral LED

Product Or Component Type

illuminated push-button

Device Presentation

monolithic product

Product Certifications

GOST || CCC

Fixing Mode

fixing nut beneath head 2-2.4 N.m

Operator Profile

green projecting, unmarked

[Ie] Rated Operational Current

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

Current Consumption

22 to 27 mA

Ambient Air Temperature For Storage

-40-70°C

Fixing Center

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

[Ui] Rated Insulation Voltage

250 V 3)EN/IEC 60947-1

Number of Indicator Lights

Lamp Voltage - Maximum

230 V AC

Operator Material

Plastic

NEMA Enclosure Rating

12, 3, 4

Resistance Properties

Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Operating Temperature - Minimum

-13 Degrees F

Operating Temperature - Maximum

158 Degrees F

Hazardous Location Specification

Not Rated

Product Type

Push Button Operators

Description

Extended Push Button, 22 mm, Momentary, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 12, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend, Standards Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508, Features Snap-Fit Assembly, Secure Connection Screws, Low Load Electrical Contact

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
