  15. Push Button operator, 22 mm, Green

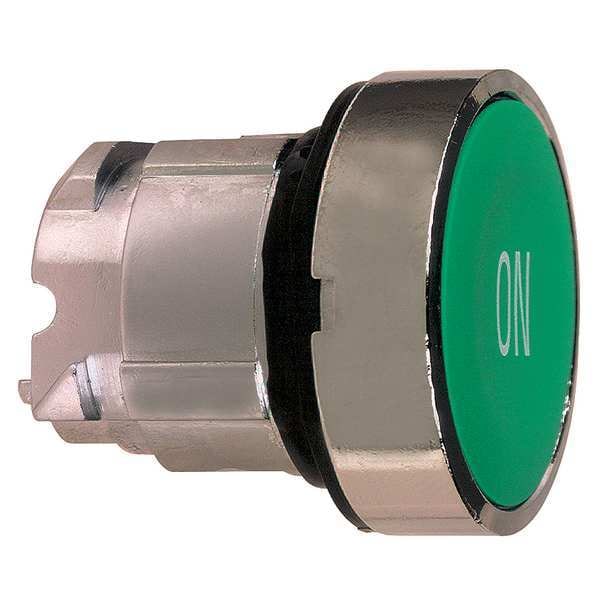

Schneider Electric Push Button operator, 22 mm, Green ZB4BA341 - main

Push Button operator, 22 mm, Green

  • Mfr # ZB4BA341

  • Zoro # G3001866

product price: $18.95
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA341
Zoro #
G3001866
UPC #
785901380245
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
28 mm
Cad Overall Height
29 mm
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in
Overall Depth
1.1 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Legend/Background Color
White/Green
Bezel Material
Metal
Basic Material
Metal
Color
Green
IP Rating
IP66
Type of Operator
Flush Button
NEMA Rating
1, 13, 2, 3, 4, 4X
Legend
On
Number of Operators
1
Series
XB4
Ambient Air Temperature For Operation
-40-70°C
Product Or Component Type
head for non-illuminated push-button
Shape Of Signaling Unit Head
round
Protective Treatment
TH
Product Certifications
CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL
Operator Profile
green flush, ON white)
Overvoltage Category
class I IEC 60536
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Short Name
ZB4
Device Presentation
basic element
Mechanical Durability
10000000 cycles
Ik Degree Of Protection
IK06 IEC 50102
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
Legend Background Color
Green
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Material
Metal
Legend Color
White

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend On, Legend/Background Color White/Green
