  15. Push Button operator, 22 mm, Red

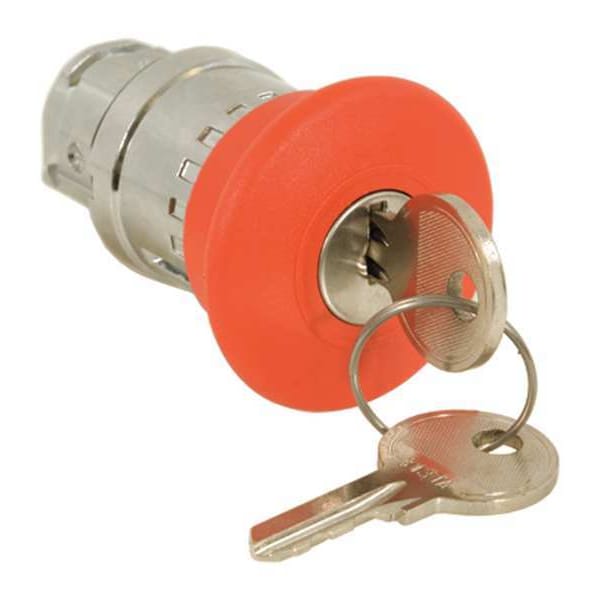

Schneider Electric Push Button operator, 22 mm, Red ZB4BS94420 - main

Push Button operator, 22 mm, Red

  • Mfr # ZB4BS94420

  • Zoro # G2363341

product price: $150.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BS94420
Zoro #
G2363341
UPC #
785901969709
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Overall Height
1.57 in
Overall Depth
3.11 in
Manufacturer Warranty Length
18 mo
Overall Width
1.57 in
Cad Overall Height
40 mm
Mounting Diameter
22 mm
Cad Overall Depth
79 mm
Cad Overall Width
40 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66
Basic Material
Metal
Bezel Material
Metal
Includes
Ronis 3131A Key
Type of Operator
40mm Mushroom Head
Color
Red
NEMA Rating
1, 13, 2, 3, 4, 4X
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB4
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Indicator Lights
0
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Nema Degree Of Protection
NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
Ik Degree Of Protection
IK03 IEC 50102
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
Device Presentation
basic element
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type Of Keylock
key 3131A
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Profile
red mushroom Ø 40 mm, unmarked
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
UL Listed || BV || GL || LROS (Lloyds register of shipping) || DNV || CSA
Protective Treatment
TH
Key Withdrawal Position
center
Head Type
standard
Electrical Composition Code
C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
Electrical Shock Protection Class
class I IEC 61140
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
ZB4
Mechanical Durability
300000 cycles
Reset
key release
Product Or Component Type
head for emergency switching off push-button

Description

Emergency Stop Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable
