  13. Push Button operator, 22 mm, Red
Shop All Push Button Switches
Schneider Electric

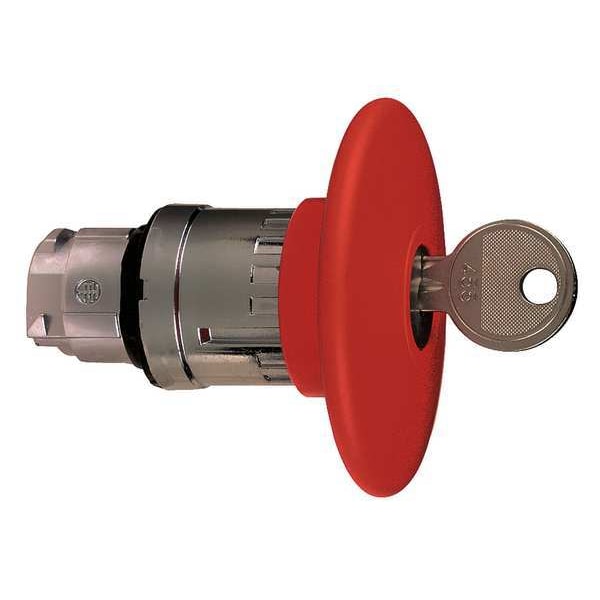

Push Button operator, 22 mm, Red

product price: $99.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Maintained
  • Size 22 mm
  • Head Material Metal
  • NEMA Rating 1, 13, 2, 3, 4, 4X
  • Type of Operator 60mm Mushroom Head
See all product information

Product Information

Dimensions

Size 22 mm
Cad Overall Depth 79 mm
Cad Overall Height 60 mm
Cad Overall Width 60 mm
Mounting Diameter 22 mm
Panel Cutout Diameter 22 mm
Overall Width 2.36 in
Manufacturer Warranty Length 18 mo
Overall Depth 3.11 in
Overall Height 2.36 in
Mushroom Head Diameter 60 mm

Details

Action Maintained
Head Material Metal
NEMA Rating 1, 13, 2, 3, 4, 4X
Type of Operator 60mm Mushroom Head
Color Red
Number of Operators 1
Item Emergency Stop Push Button
Bezel Material Metal
Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Includes Ronis 455 Key
Basic Material Metal
IP Rating IP66
Features Visually Distinct at a Distance, Snap-Fit Assembly
Series XB4
Product Type Emergency Stop Push Buttons
Device Presentation basic element
Key Withdrawal Position center
Device Short Name ZB4
Reset key release
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head round
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K
Head Type standard
Electrical Shock Protection Class class I IEC 61140
Product Certifications CSA || GL || BV || LROS (Lloyds register of shipping) || UL Listed || DNV
Mechanical Durability 300000 cycles
Type Of Keylock key 455
Operator Profile red mushroom Ø 60 mm, unmarked
Ambient Air Temperature For Operation -40-70°C
Ik Degree Of Protection IK03 IEC 50102
Protective Treatment TH
Ambient Air Temperature For Storage -40-70°C
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
Product Or Component Type head for emergency switching off push-button
Number of Indicator Lights 0
Operating Temperature - Minimum -40 Degrees F
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Maximum 158 Degrees F
Hazardous Location Specification Not Rated
Maintained Action Release Key
Operator Illumination Non-Illuminated
Push Button Style Mushroom Head
Operator Material Metal
Head Color Red

Description

Emergency Stop Push Button, 22 mm, Maintained, Type of Operator 60mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable
