  15. Push Button operator, 22 mm, Red

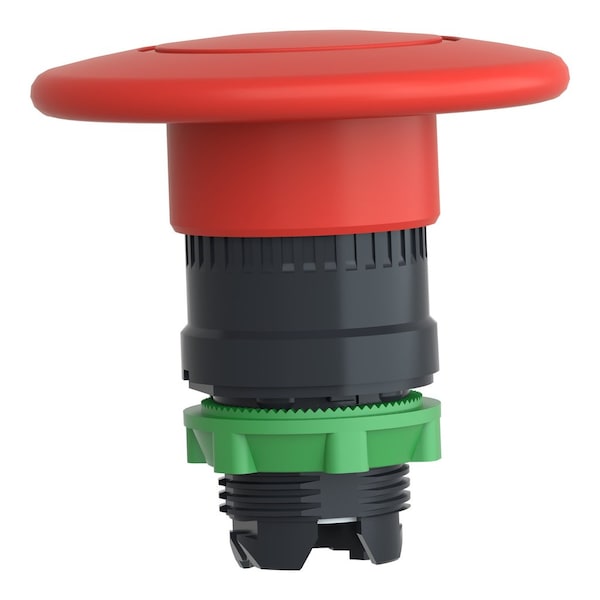

Schneider Electric Push Button operator, 22 mm, Red ZB5AX84 - main

Push Button operator, 22 mm, Red

  • Mfr # ZB5AX84

  • Zoro # G8581492

product price: $41.99
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AX84
Zoro #
G8581492
UPC #
785901979555
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
60 mm
Size
22 mm
Cad Overall Width
60 mm
Mounting Diameter
22 mm
Cad Overall Height
60 mm
Cad Overall Depth
56 mm
Overall Depth
2.2 in
Overall Width
2.36 in
Overall Height
2.36 in
Manufacturer Warranty Length
18 mo

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Accessory Group
Push Buttons
Type of Operator
60mm Mushroom Head
Color
Red
IP Rating
IP66
Bezel Material
Plastic
Basic Material
Plastic
Number of Operators
1
Features
Double Electrical Insulation
Series
XB5
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Reset
push-pull
Product Destination
emergency stop push-button
Device Presentation
basic element
Station Name
XALD 1 cut-out || XALK 1 cut-out
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Compatibility Code
ZB5
Overvoltage Category
class II IEC 60536
Electrical Composition Code
C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK03 IEC 50102
Protective Treatment
TH
Head Type
standard
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile
red mushroom Ø 60 mm, unmarked
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Mechanical Durability
300000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
ZB5
Product Or Component Type
head for emergency stop push-button
Product Certifications
LROS (Lloyds register of shipping) || CSA || UL Listed || GL || DNV || BV
Operator Material
Plastic
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
0
Hazardous Location Specification
Not Rated

Description

Emergency Stop Push Button, 22 mm, Maintained, Type of Operator 60mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable
