- Item

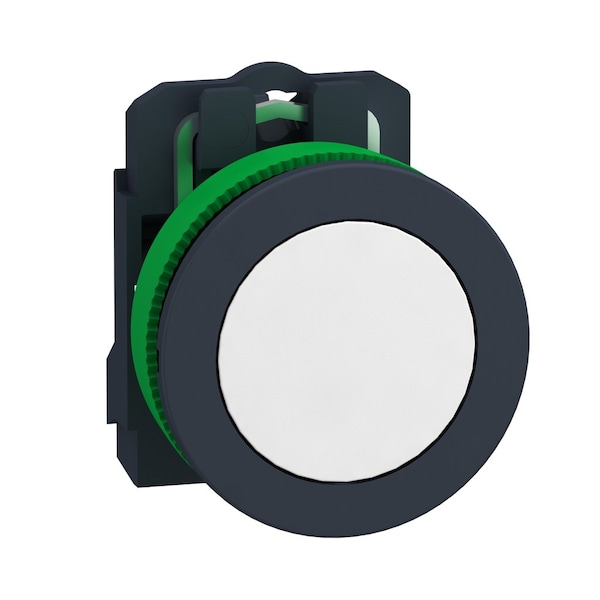

- Push Button Operator
- Push Button Style
- Flush
- Action
- Momentary
- Operator Illumination
- Non-Illuminated
- Head Color
- White
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- CE, CSA C22.2 No.14, EN 60947-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EU RoHS, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, ISO 21702, ISO 22196:2011, JIS C8201-1, JIS C8201-5-1, Marine Approval, REACH, UL 50E, UL 508, WEEE
- Contact Form
- 1NO
- Series
- XB5
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- Bezel
- Plastic
- Number of Operators
- 1
- Bezel Material
- Plastic
- NEMA Rating
- 13, 4X
- IP Rating
- IP66, IP67, IP69, IP69K
- Legend/Background Color
- No Legend
- Type of Operator
- Flush Button
- Color
- White
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Features
- Mercury Free
- Product Type
- Push Button Operators
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Operating Force
- 3.5 N NC changing electrical state
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Contacts Type And Composition
- 1 NO
- Device Short Name
- XB5F
- Product Certifications
- UL Listed || CSA
- Device Presentation
- complete product
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Product Or Component Type
- push-button
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Terminals Description Iso N°1
- (21-22)NC
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Ik Degree Of Protection
- IK03 IEC 50102
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Operation
- -40-70°C
- Shape Of Signaling Unit Head
- round
- Compatibility Code
- XB5
- Protective Treatment
- TH
- Contacts Usage
- standard contacts
- Customizable
- 1, no
- Positive Opening
- without
- Ambient Air Temperature For Storage
- -40-70°C
- Overvoltage Category
- class II IEC 60536
- Fixing Collar Material
- plastic
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Shape Of Screw Head
- cross Philips no 1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Product Compatibility
- ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
- Operator Profile
- white flush, unmarked
- Mechanical Durability
- 10000000 cycles
- Contact Operation
- slow-break
- Contacts Material
- silver alloy (Ag/Ni)
- Head Type
- built-in-flush
- Electrical Reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
- Operating Travel
- 2.6 mm NC changing electrical state)
- Terminals Description Iso N°1
- (21-22)NC
- Resistance Properties
- Antimicrobial, Dust Resistant, Shock Resistant, Vibration Resistant, Waterproof
- Operating Temperature - Minimum
- -40 Degrees F
- NEMA Enclosure Rating
- 13, 4X
- Operator Material
- Plastic
- Operator Voltage Rating - Maximum
- 600 V AC/DC
- Operating Temperature - Maximum
- 158 Degrees F
- Number of Indicator Lights
- 0
- Mechanical Operating Durability
- 1.00 x 10^7
