  15. Push Button Operator, 30 mm, 2NC, Red

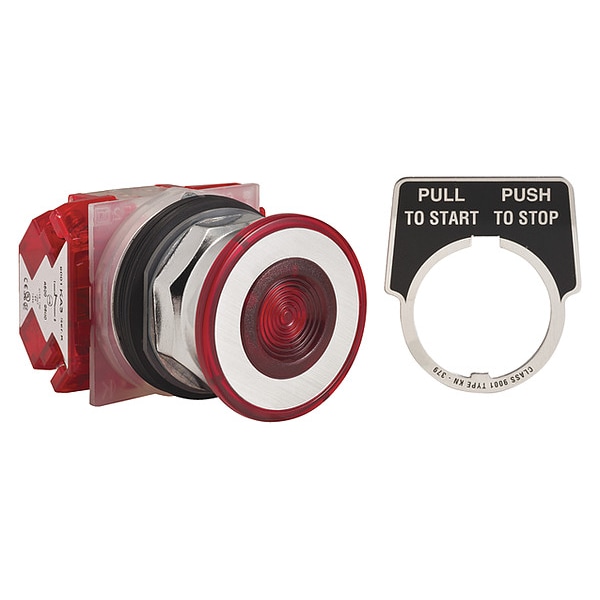

Schneider Electric Push Button Operator, 30 mm, 2NC, Red 9001KR9RH8 - main

Push Button Operator, 30 mm, 2NC, Red

  • Mfr # 9001KR9RH8

  • Zoro # G3465114

product price: $171.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR9RH8
Zoro #
G3465114
UPC #
785901034407
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
41 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Type of Operator
Guarded Button
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Legend
Pull to Start, Push to Stop
Number of Operators
1
Series
9001K
Contact Form
2NC
Bezel Material
Metal
IP Rating
IP66
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Bezel
Chrome Plated Metal
Features
Self-Grounding, Finger-Safe Terminals
Contact Rating
10A @ 600V AC
Legend/Background Color
Gray/Black
Color
Red
Product Type
Push Button Operators
Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || NEMA
Operator Profile
mushroom Ø 41 mm
Light Source
without
Product Or Component Type
push-button
Operator Position Information
2 positions
Contacts Type And Composition
2 NC
Cap/Operator Or Lens Colour
red
Contact Operation
standard
Operator Additional Information
screw-on plastic
Device Presentation
complete product
Light Block Supply
without supply
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Device Short Name
K
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Legend Color
Silver
Legend Background Color
Black
Operator Material
Plastic
Operating Temperature - Minimum
-22 Degrees F
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0

Description

Mushroom Head Push Button, 30 mm, Maintained Action, Guarded Button Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Pull to Start, Push to Stop, Legend/Background Color Gray/Black, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp
