  15. Push Button Operator, 30 mm, SPDT, Black

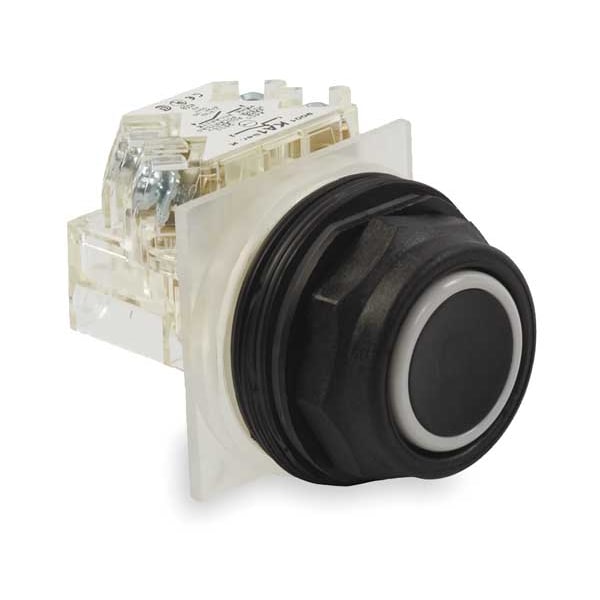

Schneider Electric Push Button Operator, 30 mm, SPDT, Black 9001SKR1BH13 - main

Push Button Operator, 30 mm, SPDT, Black

  • Mfr # 9001SKR1BH13

  • Zoro # G1331461

product price: $70.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR1BH13
Zoro #
G1331461
UPC #
785901848813
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Height
1.77 in
Overall Depth
1.65 in
Manufacturer Warranty Length
18 mo
Overall Width
1.89 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Basic Material
Plastic
Number of Operators
1
Contact Form
SPDT
Bezel
Corrosion Resistant Thermoplastic
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
IP Rating
IP66
Contact Rating
10A @ 600V AC
Features
Finger-Safe Terminals
NEMA Contact Rating Designation
A600/Q600
Material
Plastic
Color
Black
Type of Operator
Flush Button
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Bezel Material
Plastic
Series
9001SK
Product Type
Push Button Operators
Device Short Name
9001SK
Operator Additional Information
plastic guard
Cap/Operator Or Lens Colour
black
Contacts Material
silver alloy contacts
Electrical Shock Protection Class
class II IEC 61140
Shape Of Screw Head
cross slotted
Positive Opening
without
Contact Operation
standard
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
NEMA || UL 508
Protective Treatment
TC
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Operator Profile
black flush, unmarked, flush
Operating Position
any position
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Shape Of Signaling Unit Head
octagonal
Contacts Type And Composition
1 C/O
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 6 kA 125 V DC-13, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
Shock Resistance
50 gn IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
10 A
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Ip Degree Of Protection
IP66 IEC 60529
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Product Or Component Type
push-button
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
complete product
Ambient Air Temperature For Operation
-25-70°C
Mechanical Durability
5000000 cycles
Operator Voltage Rating - Maximum
600 V AC
Mechanical Operating Durability
5.00 x 10^6
Resistance Properties
Chemical Resistant, Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Material
Plastic

Description

Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
