- MFR #
- 9001KR9RH13
- Zoro #
- G2747997
- UPC #
- 785901821090
- Country of Origin
- Korea, Republic of

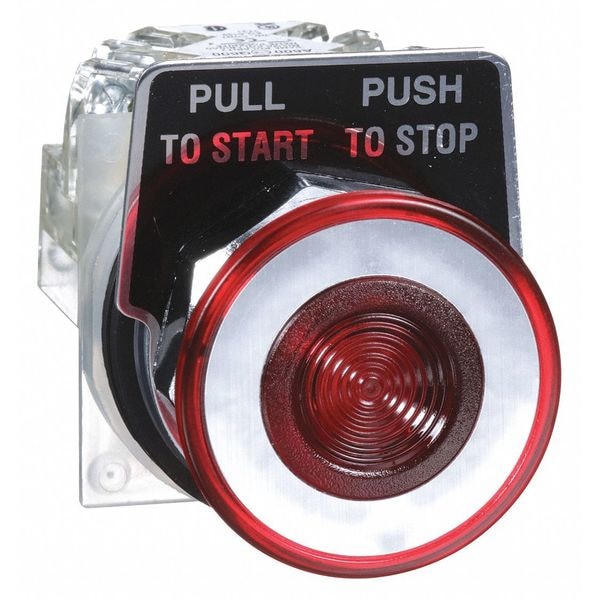

- Item
- Push Button Operator
- Push Button Style
- Mushroom Head
- Action
- Maintained
- Maintained Action Release
- Push/Pull
- Operator Illumination
- Non-Illuminated
- Head Color
- Red
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
- Color
- Red
- Material
- metal
- Legend
- Pull to Start, Push to Stop
- Contact Form
- SPDT
- NEMA Contact Rating Designation
- A600/Q600
- Basic Material
- Metal
- Contact Rating
- 10A @ 600V AC
- Type of Operator
- 40mm Mushroom Head
- Bezel
- Chrome Plated Zinc Die Cast
- NEMA Rating
- 1, 12, 13, 2, 3, 3R, 4, 6
- Features
- Finger-Safe Terminals
- Number of Operators
- 1
- IP Rating
- IP66
- Bezel Material
- Metal
- Series
- 9001K
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Product Type
- Push Button Operators
- Mechanical Durability
- 5000000 cycles
- Operator Position Information
- 2 positions
- Device Presentation
- complete product
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- Contacts Type And Composition
- 1 C/O
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Positive Opening
- without
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Product Or Component Type
- push-button
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Product Certifications
- UL 508 || NEMA
- Operator Additional Information
- screw-on plastic
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Overvoltage Category
- class II IEC 61140
- Contacts Material
- silver alloy contacts
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Shock Resistance
- 50 gn IEC 60068-2-27
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Cap/Operator Or Lens Colour
- red
- Shape Of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
- Operator Profile
- mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked
- Ambient Air Temperature For Storage
- -40-70°C
- Ambient Air Temperature For Operation
- -25-70°C
- Ip Degree Of Protection
- IP66 IEC 60529
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
- Protective Treatment
- TC
- Device Short Name
- 9001K
- Products By Industry
- Electrical
- Rated Short Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13; 0.55 kA 125 V DC-13
- Conventional Free Air Thermal Current
- 10 A
- Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA; 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Operator Material
- Plastic
- Operating Temperature - Minimum
- -13 Degrees F
- Mechanical Operating Durability
- 5.00 x 10^6
- Operating Temperature - Maximum
- 158 Degrees F
- Operator Voltage Rating - Maximum
- 600 V AC
- Legend Background Color
- White
- Number of Indicator Lights
- 0
- Hazardous Location Specification
- Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
- Resistance Properties
- Corrosion Resistant
- Legend Color
- Black
- NEMA Enclosure Rating
- 1, 12, 13, 2, 3, 3R, 4, 6
