  15. Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green

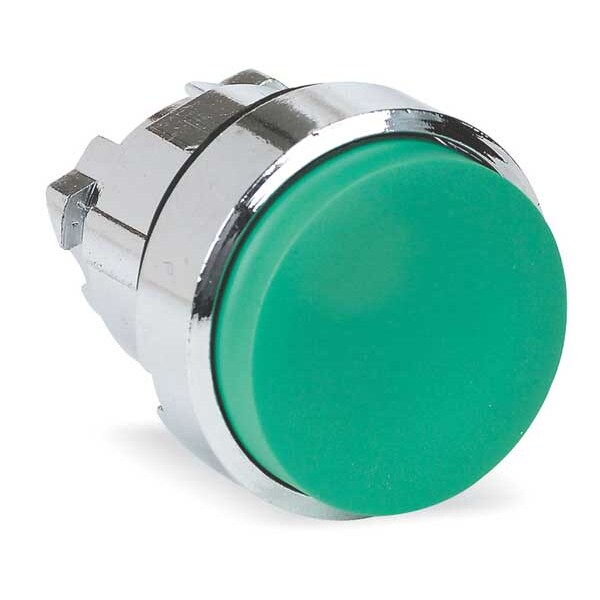

Schneider Electric Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green ZB4BW133 - main

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green

  • Mfr # ZB4BW133

  • Zoro # G3289456

product price: $11.59
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW133
Zoro #
G3289456
UPC #
785901353898
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
33 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in
Overall Width
1.14 in
Overall Depth
1.3 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Type
No Lamp Module Included
Basic Material
Metal
IP Rating
IP66
Type of Operator
Extended Button
Lamp Voltage
Dependent on Module Used
NEMA Rating
13, 4X
Color
Green
Lamp Module Voltage
Module Not Included
Lamp Module Type
No Lamp Module Included
Bezel
Plastic
Bezel Material
Metal
Series
XB4
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Number of Operators
1
Protective Treatment
TH
Device Presentation
basic sub-assemblies
Product Certifications
CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV || DNV
Head Type
standard
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
ZB4
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
universal LED
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Mechanical Durability
10000000 cycles
Operator Profile
green projecting, unmarked
Ambient Air Temperature For Storage
-40-70°C
Overvoltage Category
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
head for illuminated push-button
Ambient Air Temperature For Operation
-40-70°C
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK05 EN 50102
Operator Additional Information
with plain lens
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
Hazardous Location Specification
Not Rated
Operator Material
Metal

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
