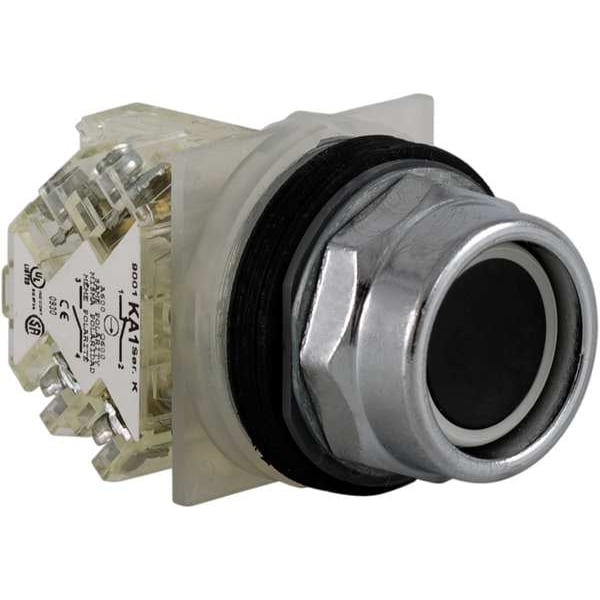

Schneider Electric Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Black 9001KR2BH13 - main

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Black

  • Mfr # 9001KR2BH13

  • Zoro # G0890197

product price: $81.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR2BH13
Zoro #
G0890197
UPC #
785901033615
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
IP Rating
IP66
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Features
Finger-Safe Terminals
Contact Form
SPDT
Type of Operator
Extended Button
Color
Black
Contact Rating
10A @ 600V AC
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Material
metal
NEMA Contact Rating Designation
A600/Q600
Bezel Material
Metal
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Contact Operation
standard
Operating Position
any position
Contacts Type And Composition
1 C/O
Device Presentation
complete product
Product Certifications
CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
Device Short Name
K
Light Source
without
Product Or Component Type
push-button
Light Block Supply
without supply
Cap/Operator Or Lens Colour
black
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operator Additional Information
metal guard
Operator Profile
black recessed, recessed
Connections - Terminals
screw clamp terminals
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Operating Temperature - Maximum
140 Degrees F
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Minimum
-22 Degrees F

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
