  15. Push Button Operator, Extended, Momentary Action, Push Release, Illuminated, Orange

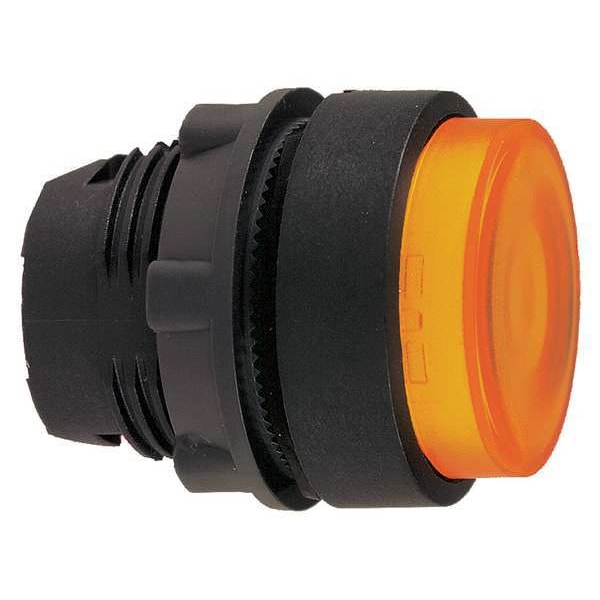

Schneider Electric Push Button Operator, Extended, Momentary Action, Push Release, Illuminated, Orange ZB5AW15 - main

Push Button Operator, Extended, Momentary Action, Push Release, Illuminated, Orange

  • Mfr # ZB5AW15

  • Zoro # G3001647

product price: $10.79
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW15
Zoro #
G3001647
UPC #
785901388159
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Cad Overall Depth
32 mm
Overall Depth
1.26 in
Overall Height
1.14 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Voltage
Dependent on Module Used
Basic Material
Plastic
Lamp Type
No Lamp Module Included
Color
Yellow
Lamp Module Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
Bezel
Plastic
Type of Operator
Extended Button
IP Rating
IP66
NEMA Rating
13, 4X
Bezel Material
Plastic
Series
XB5
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Number of Operators
1
Ik Degree Of Protection
IK05 EN 50102
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Cap/Operator Or Lens Colour
orange
Product Or Component Type
head for illuminated push-button
Ambient Air Temperature For Operation
-40-55°C
Protective Treatment
TC
Product Certifications
LROS (Lloyds register of shipping) || UL Listed || BV || DNV || CSA || GL
Group Of Product
projected push BA9s
Marking
unmarked
Operator Profile
orange projecting, unmarked
Shape Of Signaling Unit Head
round
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Additional Information
with plain lens
Device Presentation
basic sub-assemblies
Overvoltage Category
class II IEC 60536
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Product Compatibility
BA 9s
Device Short Name
ZB5
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability
10000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
standard
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Ambient Air Temperature For Storage
-40-70°C
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
Operating Temperature - Maximum
131 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
