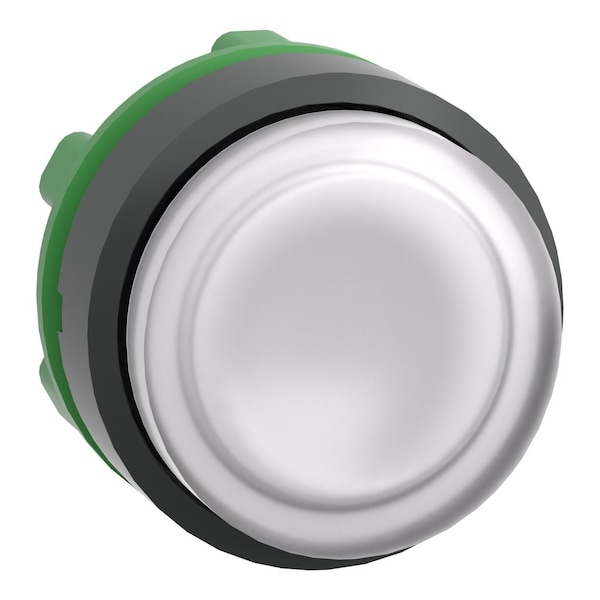

Schneider Electric Push Button Operator, Extended, Momentary Action, Push Release, Illuminated, White ZB5AW113 - main

Push Button Operator, Extended, Momentary Action, Push Release, Illuminated, White

  • Mfr # ZB5AW113

  • Zoro # G1794843

product price: $10.79
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW113
Zoro #
G1794843
UPC #
785901388142
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
33 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in
Overall Depth
1.3 in
Overall Height
1.14 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Voltage
Module Not Included
Color
White
Type of Operator
Extended Button
Lamp Voltage
Dependent on Module Used
Bezel
Plastic
Lamp Module Type
No Lamp Module Included
NEMA Rating
13, 4X
IP Rating
IP66
Lamp Type
No Lamp Module Included
Basic Material
Plastic
Bezel Material
Plastic
Series
XB5
Features
Snap-Fit Assembly, Visually Distinct at a Distance, Withstands Harsh Environments
Number of Operators
1
Ambient Air Temperature For Operation
-40-70°C
Product Or Component Type
head for illuminated push-button
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shape Of Signaling Unit Head
round
Product Certifications
DNV || CSA || UL Listed || GL || BV || LROS (Lloyds register of shipping)
Marking
unmarked
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Ambient Air Temperature For Storage
-40-70°C
Cap/Operator Or Lens Colour
white
Mechanical Durability
10000000 cycles
Device Short Name
ZB5
Operator Additional Information
with plain lens
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Operator Profile
white projecting, unmarked
Device Presentation
basic sub-assemblies
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Compatibility
universal LED
Protective Treatment
TC
Group Of Product
proj push integral LED
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of Protection
IK05 EN 50102
Overvoltage Category
class II IEC 60536
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
Product Type
Push Button Operators
Operating Temperature - Minimum
-40 Degrees F
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color White, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
