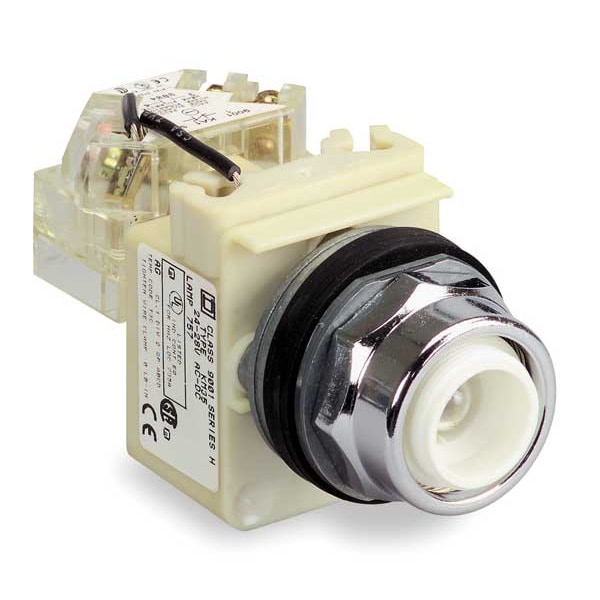

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable 9001K1L35 - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable

  • Mfr # 9001K1L35

  • Zoro # G3441837

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K1L35
Zoro #
G3441837
UPC #
785901027119
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Height
1.62 in
Overall Depth
3.07 in
Manufacturer Warranty Length
18 mo
Overall Width
2.13 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
REACH Free of SVHC, RoHS
Lamp Voltage
24V AC/DC
IP Rating
IP66
Lamp Type
LED
Basic Material
Metal
Lamp Module Type
Full Voltage
Bezel
Metal
Type of Operator
Full Guarded Button
Lamp Module Voltage
24V AC/DC
Color
No Cap
NEMA Rating
12, 3R, 4
Replacement Lamp
2FMP7
Bezel Material
Metal
Features
Colored Lens Cap Needed
Series
9001K
Number of Operators
1
Light Block Supply
full voltage
Operator Additional Information
plastic guard
Cap/Operator Or Lens Colour
without cap
Operator Profile
flush, without cap flush
Product Or Component Type
head for illuminated push-button
Device Short Name
9001K
[Us] Rated Supply Voltage
24 to 28 V
Contacts Type And Composition
without contact block
Shape Of Signaling Unit Head
round
Product Type
Push Button Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Lamp Voltage - Maximum
28 V AC/DC
Number of Indicator Lights
1
Hazardous Location Specification
Not Rated
Operator Material
Metal

Description

Flush Push Button, 30 mm, Momentary, Type of Operator Full Guarded Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color No Cap, NEMA Rating 12, 3R, 4, IP Rating IP66, Legend Not Applicable, Standards REACH Free of SVHC, RoHS, Includes Incandescent lamp, Features Colored Lens Cap Needed
