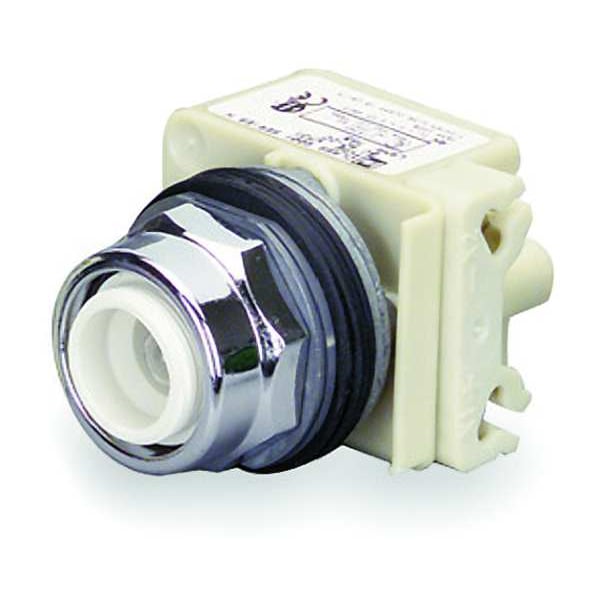

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable 9001K2L - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable

  • Mfr # 9001K2L

  • Zoro # G2317567

product price: $31.55
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K2L
Zoro #
G2317567
UPC #
785901178538
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Depth
1.49 in
Overall Width
1.69 in
Overall Height
1.74 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
REACH Free of SVHC, RoHS
Lamp Module Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
Basic Material
Metal
Color
No Lens
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Type of Operator
No Guard
IP Rating
IP64
Bezel
Chrome Plated Metal
Bezel Material
Metal
Number of Operators
1
Series
9001K
Contacts Type And Composition
without contact block
Device Short Name
9001K
Operator Profile
without cap flush, projecting
Product Or Component Type
head for illuminated push-button
Operator Additional Information
without guard
Shape Of Signaling Unit Head
round
Cap/Operator Or Lens Colour
without cap
Light Block Supply
without supply
Operator Material
Metal
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
Number of Indicator Lights
1
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4

Description

Flush Push Button, 30 mm, Momentary, Type of Operator No Guard, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color No Lens, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP64, Legend Not Applicable, Standards REACH Free of SVHC, RoHS
