  15. Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Red

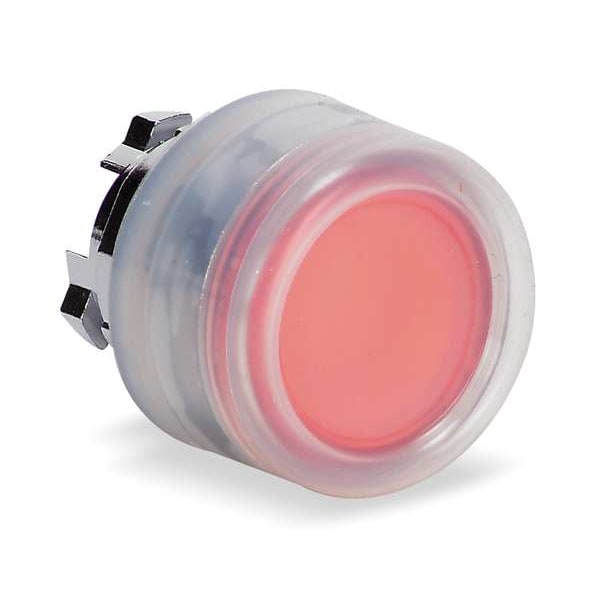

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Red ZB4BW543 - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Red

  • Mfr # ZB4BW543

  • Zoro # G2205366

product price: $24.79
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW543
Zoro #
G2205366
UPC #
785901383161
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
30 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Overall Depth
1.18 in
Overall Width
1.14 in
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Type
No Lamp Module Included
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
Color
Red
Basic Material
Metal
IP Rating
IP69K
Lamp Module Voltage
Module Not Included
Type of Operator
Flush Booted Button
Bezel
Chrome Plated Metal
Bezel Material
Metal
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB4
Device Presentation
basic sub-assemblies
Head Type
standard
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
red flush, unmarked
Mechanical Durability
10000000 cycles
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Ik Degree Of Protection
IK06 EN 50102
Operator Additional Information
clear boot
Overvoltage Category
class I IEC 60536
Product Or Component Type
head for illuminated push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
DNV || LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB4
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
universal LED
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
Operator Material
Metal
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Booted Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 13, 4X, IP Rating IP69K, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
