Shop SCHNEIDER ELECTRIC

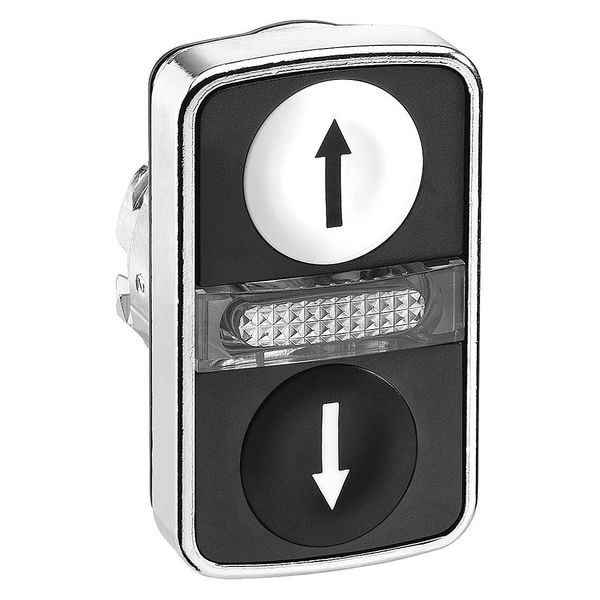

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated

  • Mfr # ZB4BW7A1724
  • Zoro # G6852106
product price:
$
38.25
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Black; (1) White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BW7A1724
Zoro #
G6852106
UPC #
785901526100
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Cad Overall Height
50 mm
Cad Overall Width
30 mm
Overall Depth
1.18 in
Overall Width
1.18 in
Overall Height
1.97 in
Manufacturer Warranty Length
18 mo
Fits Chest Size
Snap-Fit Assembly

Details

Item
Multihead Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
(1) Black; (1) White
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Shape
Rectangular
Lamp Voltage
Module Not Included
IP Rating
IP66
Type of Operator
(1) Light, (2) Flush Buttons
Number of Heads
2
Includes
Up/Down Arrows Marking
NEMA Rating
13, 4X
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Lamp Type
No Lamp Module Included
Legend
Down Arrow, Up Arrow
Legend/Background Color
Black/White, White/Black
Features
Snap-Fit Assembly
Bezel Material
Metal
Number of Operators
2
Series
XB4
Lamp Module Type
No Lamp Module Included
Legend Color
Black/White
Product Type
Multihead Operators
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK06 IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Profile
white flush, up arrow black) || black flush, down arrow white), 2 flush push-buttons - 1 central pilot light
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB4
Product Or Component Type
head for illuminated double-headed push-button
Head Type
standard
Protective Treatment
TH
Product Compatibility
integral LED
Ambient Air Temperature For Operation
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic sub-assemblies
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Mechanical Durability
1000000 cycles
Product Certifications
BV || DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL
Electrical Shock Protection Class
class I IEC 61140
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Shape Of Signaling Unit Head
rectangular
Operators Description
white ''up arrow'' - black ''down arrow''
Operating Temperature - Minimum
-40 Degrees F
Operator Material
Metal
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Hazardous Location Specification
Not Rated
Legend Background Color
Black/White
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Light, (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, Legend Down Arrow, Up Arrow, Legend/Background Color Black/White, White/Black
