  15. Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated

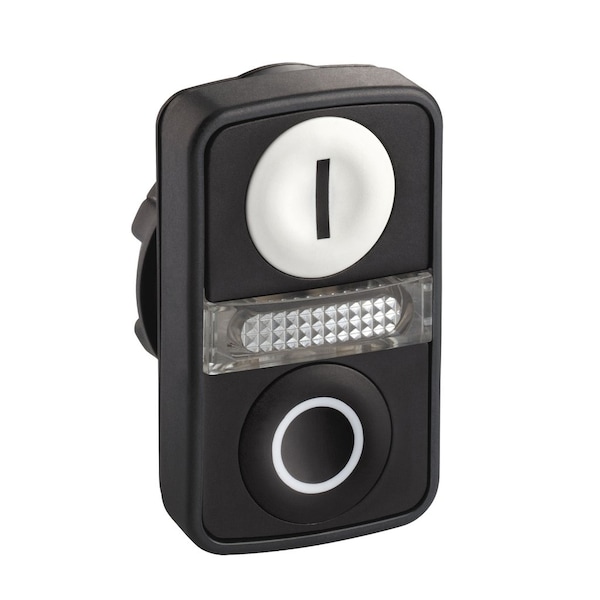

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated ZB5AW7A1721 - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated

  • Mfr # ZB5AW7A1721

  • Zoro # G4537197

product price: $45.55
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Black; (1) White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW7A1721
Zoro #
G4537197
UPC #
785901508380
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
30 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Cad Overall Height
50 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.18 in
Overall Height
1.97 in
Overall Depth
1.18 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
(1) Black; (1) White
Head Material
Plastic
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Type of Operator
(2) Flush Buttons
NEMA Rating
13, 4X
Legend
I, O
IP Rating
IP66, IP67, IP69, IP69K
Legend/Background Color
Black/White, White/Black
Number of Heads
2
Shape
Rectangular
Lamp Type
No Lamp Module Included
Lamp Voltage
Module Not Included
Includes
Black I on White Background and White O on Black Background
Bezel Material
Plastic
Lamp Module Type
No Lamp Module Included
Series
XB5
Number of Operators
3
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Legend Color
Black/White
Product Type
Multihead Operators
Device Presentation
basic sub-assemblies
Shape Of Signaling Unit Head
rectangular
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Colour Of Marking
black marking when white caps
Product Or Component Type
head for illuminated double-headed push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Electrical Shock Protection Class
class II IEC 60536
Ik Degree Of Protection
IK05 IEC 50102
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 || IP67 || IP69 || IP69K
Operator Profile
2 flush push-buttons - 1 central pilot light, white flush, I black) || black flush, O white)
Station Name
XALD 1 cut-out
Head Type
standard
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
ZB5
Operators Description
white ''I'' - black ''O''
Product Compatibility
integral LED
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
BV || DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Legend Background Color
Black/White
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Multihead Operator, 22 mm, Momentary/Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Plastic, Bezel Material Plastic, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend I, O, Legend/Background Color Black/White, White/Black, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
