  15. Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Green

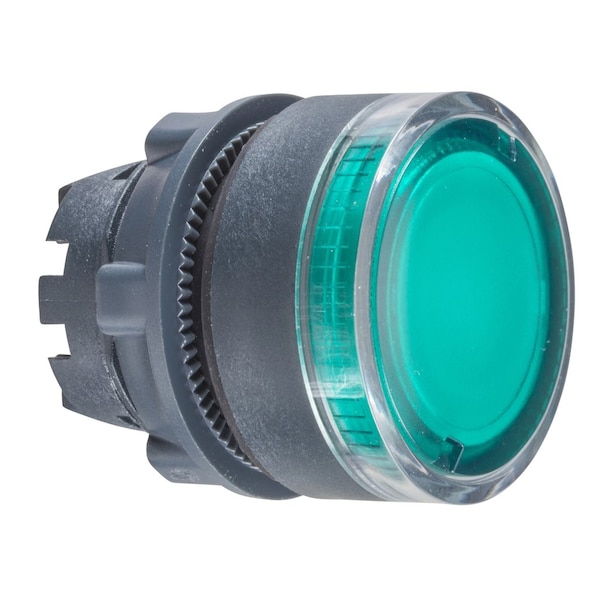

Schneider Electric Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Green ZB5AW33 - main

Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Green

  • Mfr # ZB5AW33

  • Zoro # G1096995

product price: $15.75
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW33
Zoro #
G1096995
UPC #
785901355151
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Cad Overall Depth
32 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in
Overall Depth
1.26 in
Overall Height
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Bezel
Plastic
Lamp Module Type
No Lamp Module Included
NEMA Rating
13, 4X
Basic Material
Plastic
Lamp Module Voltage
Module Not Included
Lamp Voltage
Dependent on Module Used
Color
Green
Lamp Type
No Lamp Module Included
Type of Operator
Flush Button
IP Rating
IP66
Bezel Material
Plastic
Series
XB5
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Number of Operators
1
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK05 EN 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Operation
-40-55°C
Shape Of Signaling Unit Head
round
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Product Certifications
GL || DNV || LROS (Lloyds register of shipping) || CSA || BV || UL Listed
Marking
unmarked
Cap/Operator Or Lens Colour
green
Protective Treatment
TC
Group Of Product
flush push BA9s
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Presentation
basic sub-assemblies
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
ZB5
Product Or Component Type
head for illuminated push-button
Operator Profile
green flush, unmarked
Overvoltage Category
class II IEC 60536
Product Compatibility
BA 9s
Head Type
standard
Operator Additional Information
with plain lens
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability
10000000 cycles
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
Operator Material
Plastic
Product Type
Push Button Operators
Operating Temperature - Maximum
131 Degrees F

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
