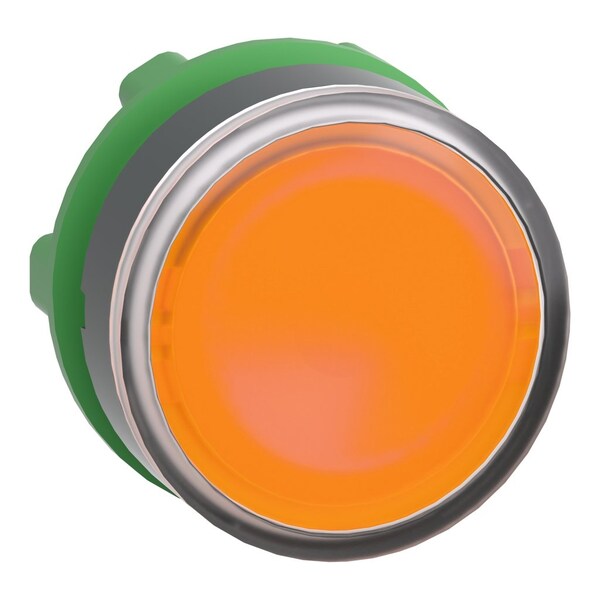

Schneider Electric Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Orange ZB5AW353 - main

Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Orange

  • Mfr # ZB5AW353

  • Zoro # G1661721

product price: $18.65
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW353
Zoro #
G1661721
UPC #
785901355236
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Width
1.14 in
Overall Height
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Voltage
Module Not Included
Basic Material
Plastic
Bezel
Plastic
NEMA Rating
13, 4X
Lamp Module Type
No Lamp Module Included
Lamp Type
No Lamp Module Included
Type of Operator
Flush Button
Lamp Voltage
Dependent on Module Used
IP Rating
IP66
Color
Yellow
Bezel Material
Plastic
Series
XB5
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Number of Operators
1
Protective Treatment
TC
Group Of Product
flush push integral LED
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK05 EN 50102
Head Type
standard
Operator Additional Information
with plain lens
Operator Profile
orange flush, unmarked
Product Certifications
BV || CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || GL
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Cap/Operator Or Lens Colour
orange
Product Compatibility
universal LED
Ambient Air Temperature For Operation
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Product Or Component Type
head for illuminated push-button
Overvoltage Category
class II IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Presentation
basic sub-assemblies
Device Short Name
ZB5
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Marking
unmarked
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Product Type
Push Button Operators
Operator Material
Plastic
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
