- Item
- Push Button Operator
- Push Button Style
- Flush
- Action
- Momentary / Momentary
- Operator Illumination
- Illuminated
- Head Color
- Green
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
- Lamp Voltage
- 24V AC/DC
- Contact Rating
- 10A @ 600V AC
- Type of Operator
- (1) Extended Button, (1) Flush Button, (1) Light
- Lamp Module Type
- Full Voltage
- Includes
- 24V Light, White I on Green Background and White O on Red Background
- Basic Material
- Plastic
- Contact Form
- 1NO/1NC
- Legend/Background Color
- White/Green, White/Red
- Number of Heads
- 3
- IP Rating
- IP66, IP69, IP69K
- Lamp Type
- LED
- Legend
- I/O
- Shape
- Rectangle
- NEMA Rating
- 1, 12, 3, 4, 4X
- NEMA Contact Rating Designation
- A600/Q600
- Replacement Lamp
- Mfr. No 25501-01-027
- Lamp Module Voltage
- 24V AC/DC
- Bezel Material
- Plastic
- Series
- XB5
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Number of Operators
- 3
- Legend Color
- White
- Product Type
- Multihead Operators
- Light Source
- protected LED
- Ik Degree Of Protection
- IK05 IEC 50102
- Shape Of Signaling Unit Head
- rectangular
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Bulb Base
- integral LED
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Ambient Air Temperature For Operation
- -40-70°C
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Contacts Usage
- standard contacts
- Product Or Component Type

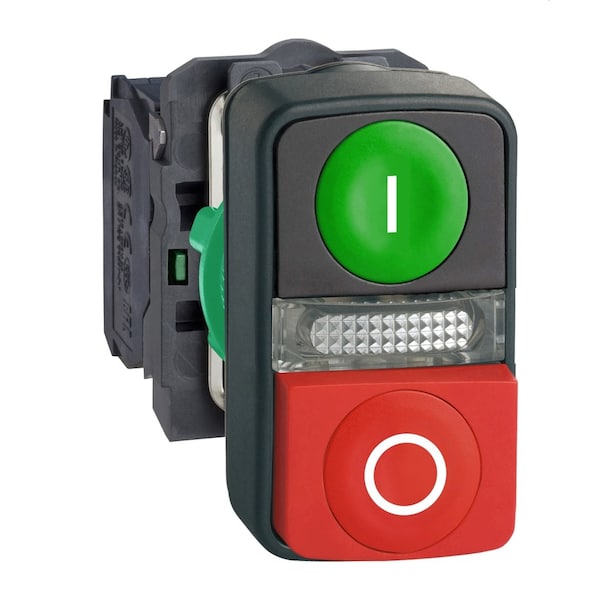

- illuminated double-headed push-button
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile
- 1 flush - 1 projecting push-buttons - 1 central pilot light, green flush, I white) || red projecting, O white)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- Surge Withstand
- 1 kV IEC 61000-4-5
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Ambient Air Temperature For Storage
- -40-70°C
- Head Type
- standard
- Terminals Description Iso N°1
- (11-12)NC || (13-14)NO
- Operators Description
- green ''I'' - red ''O''
- Operating Travel
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Contacts Type And Composition
- 1 NO + 1 NC
- Electromagnetic Emission
- class B IEC 55011
- Current Consumption
- 18 mA
- Signalling Type
- steady
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Device Presentation
- complete product
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 IEC 60529 || IP69K
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Contact Operation
- slow-break
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Colour Of Marking
- black marking when white caps || white marking when green, red or black caps
- Mechanical Durability
- 1000000 cycles
- Light Source Colour
- white
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Contacts Material
- silver alloy (Ag/Ni)
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Operating Force
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Fixing Collar Material
- plastic
- Protective Treatment
- TH
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- Product Certifications
- LROS (Lloyds register of shipping) || GL || DNV || UL Listed || BV || CSA
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Overvoltage Category
- class II IEC 61140
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Device Short Name
- XB5
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Operator Voltage Rating - Maximum
- 600 V AC/DC
- NEMA Enclosure Rating
- 13, 4X
- Mechanical Operating Durability
- 1.00 x 10^6
- Operating Temperature - Minimum
- -40 Degrees F
- Legend Background Color
- Green/Red
- Number of Indicator Lights
- 0
- Operator Material
- Plastic
- Operating Temperature - Maximum
- 158 Degrees F
- Lamp Voltage - Maximum
- 24 V AC/DC
- Resistance Properties
- Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
