  15. Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red

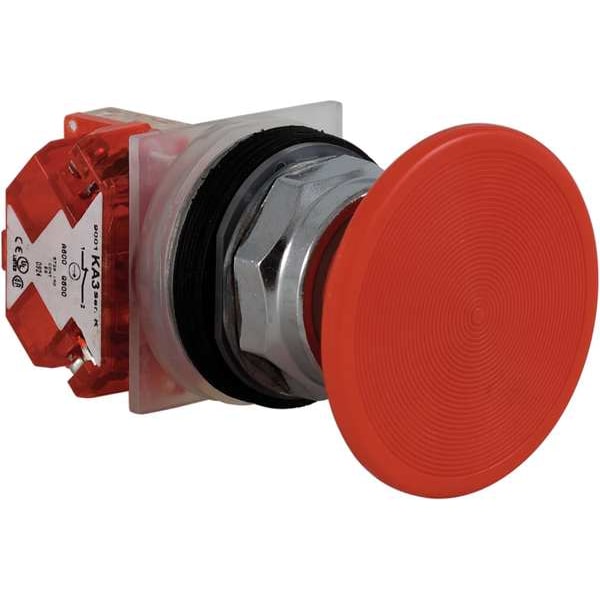

Schneider Electric Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red 9001KR25RH6 - main

Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red

  • Mfr # 9001KR25RH6

  • Zoro # G1781297

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR25RH6
Zoro #
G1781297
UPC #
785901033592
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
57 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Contact Form
1NC
Contact Rating
10A @ 600V AC
Basic Material
Metal
Color
Red
Bezel
Chrome Plated Zinc Die Cast
NEMA Contact Rating Designation
A600/Q600
Features
Finger-Safe Terminals
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Number of Operators
1
IP Rating
IP66
Material
metal
Type of Operator
57mm Mushroom Head
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
9001K
Bezel Material
Metal
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Operating Position
any position
Light Source
without
Connections - Terminals
screw clamp terminals
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Contacts Type And Composition
1 NC
Device Presentation
complete product
Contact Operation
standard
Light Block Supply
without supply
Product Certifications
NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
Device Short Name
K
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Operator Profile
red mushroom Ø 57 mm, mushroom Ø 57 mm
Operator Additional Information
screw-on plastic with set screw
Product Or Component Type
push-button
Cap/Operator Or Lens Colour
red
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Operating Temperature - Minimum
-22 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Material
Plastic
Operating Temperature - Maximum
140 Degrees F
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 57mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
