  13. Push Button with Transmitter, 22 mm, Yellow
Shop All Push Button Switches
Schneider Electric

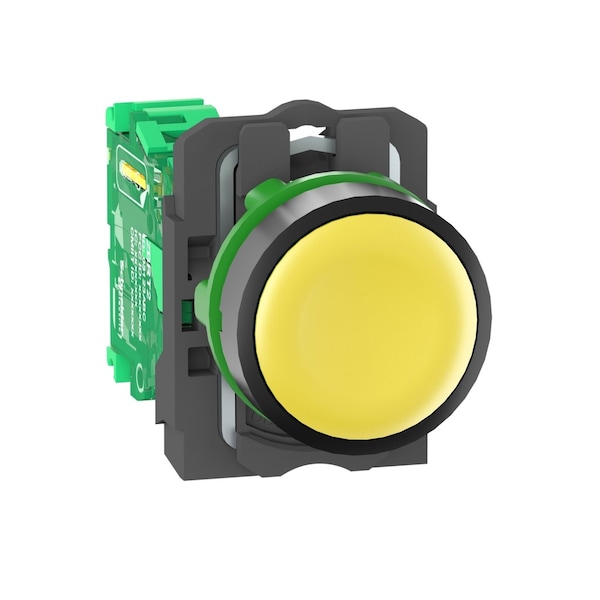

Push Button with Transmitter, 22 mm, Yellow

product price: $121.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Momentary
  • Size 22 mm
  • NEMA Rating 12
  • Type of Operator Flush Push Button
  • Color Yellow
See all product information

Product Information

Dimensions

Size 22 mm
Width 3.39 in
Length 2.05 in
Height 1.3 in
Length (Straight Wireway) 2.05 in
Embedding Depth 42 mm
Cad Overall Depth 43 mm
Bandwidth 5-5 MHz
Mounting Diameter 22 mm
Cad Overall Height 41.5 mm
Cad Overall Width 30 mm

Details

Action Momentary
NEMA Rating 12
Type of Operator Flush Push Button
Color Yellow
Number of Operators 1
Item Push Button with Transmitter
Bezel Material dark grey plastic
Standards UL/CSA
Legend Markings No Legend
IP Rating 30
Material Plastic
Response Time < 2 ms
Device Short Name XB5R
Operator Profile yellow flush
Antenna Type omnidirectional
Fixing Mode fixing nut beneath head 2-2.4 N.m
Ambient Air Temperature For Storage -40-70°C
Fixing Collar Material plastic
Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Level Or Class 5M00G7W
Antenna Gain 0 dBi
Ambient Air Temperature For Operation -40-70°C
Maximum Sensing Distance 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Product Or Component Type wireless and batteryless transmitter
Electrical Composition Code PW1
Ik Degree Of Protection IK03 IEC 50102
Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32
Product Certifications BT 2006/95/EC || CCC || GOST || C-tick || CSA || UL
Ip Degree Of Protection IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Acquisition Time 2 ms
Max Power Consumption In W 1 mW
Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Relative Humidity 95-95 % -40-70°C without condensation
Transmission Frequency 2405 MHz
Operating Travel 4.3 mm total travel)
Radio Agreement ANATEL || ARIB T66 || FCC || ICASA || RSS
Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3
Shape Of Signaling Unit Head round
Number Of Channels 16
Emission Power 3 mW
Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4
Mechanical Durability 1000000 cycles
Modulation Technique O-QPSK
Operating Force 10 N C/O changing electrical state
Station Name XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs

Description

Push Button with Transmitter, Color Yellow, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating 30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards UL/CSA
