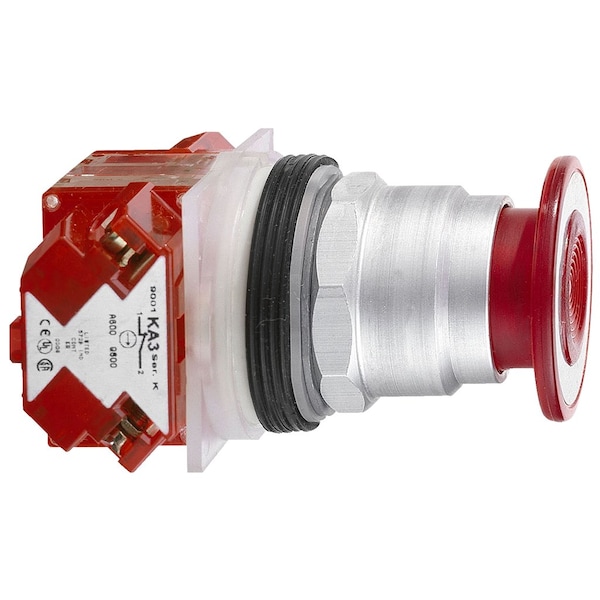

Push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 1NC

Push Button Operator

Mushroom Head

Maintained / Momentary

Non-Illuminated

Red

Plastic

Screw Clamp

EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14

metal

red

10 A cartridge fuse EN/IEC 60947-5-1

any position

-25-70°C

screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1

round

mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked

250 V 3)EN/IEC 60947-1

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

silver alloy contacts

1 NC

NEMA || UL 508

screw-on plastic

cross slotted

IP66 IEC 60529

5000000 cycles

-40-70°C

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

7 gn 2-500 Hz)IEC 60068-2-6

push-button

push-pull

with IEC 60947-5-2

0.8-0.8 N.m EN/IEC 60947-1

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

9001K

2 positions

50 gn IEC 60068-2-27

12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

10 A

TC

complete product

class II IEC 61140

Harmony 9001K
