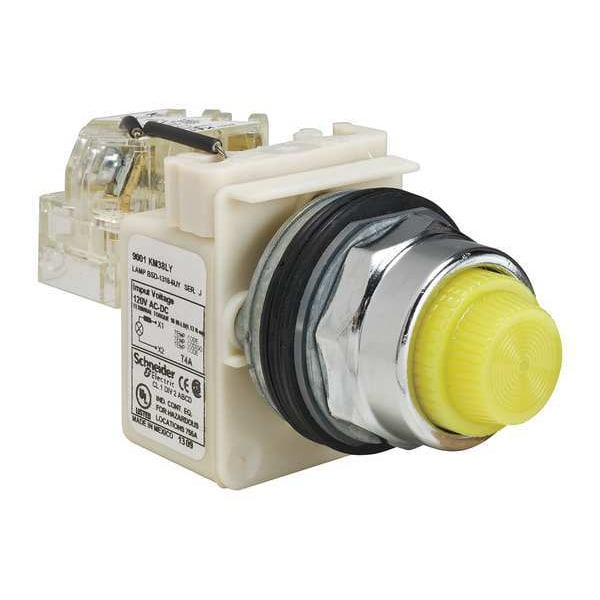

Schneider Electric Push to Test Pilot Light, Yellow, LED 9001KT38LYY31 - main

Push to Test Pilot Light, Yellow, LED

  • Mfr # 9001KT38LYY31

  • Zoro # G6369422

product price: $172.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Color
Yellow
Action
Push-to-test
Lamp Type
LED
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KT38LYY31
Zoro #
G6369422
UPC #
785901036210
Country of Origin
Mexico

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Overall Height
3.88 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.62 in
Overall Width
2.13 in

Details

Item
Pilot Light
Voltage
120V AC
Color
Yellow
Action
Push-to-test
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
1 C/O
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Fresnel
Lamp Module Type
Full Voltage
Basic Material
Metal
Lamp Voltage
120V AC
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
IP Rating
IP66
Body Material
Zinc Die Cast
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Includes Push-To-Test
Push-To-Test Included
Voltage Rating - Maximum
120 V AC/DC
Includes Lens
Lens Included
Body Finish
Chrome Plated
Includes Lamp Module
Lamp Module Included
Series
9001K
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Voltage - Maximum
120 V
Lamp Color
Yellow
Lens Color
Yellow

Description

Pilot Light, Voltage 120V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
