  15. Pushbutton Enclosure, 22mm, 5 Hole, Plastic

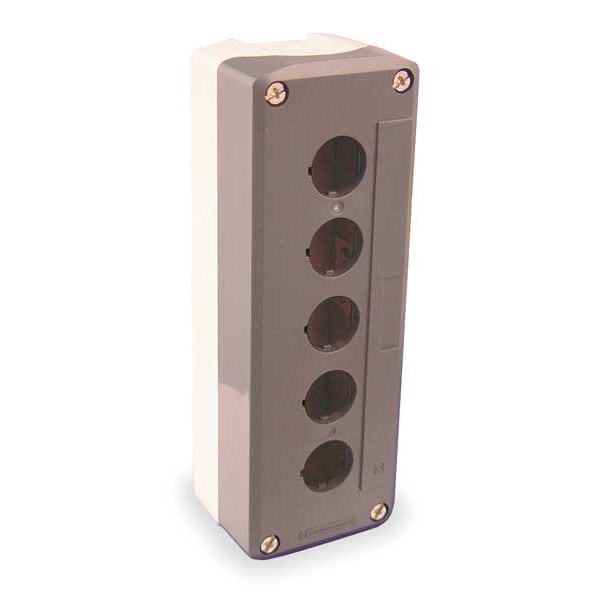

Schneider Electric Pushbutton Enclosure, 22mm, 5 Hole, Plastic XALD05H7 - main

Pushbutton Enclosure, 22mm, 5 Hole, Plastic

  • Mfr # XALD05H7

  • Zoro # G0451902

product price: $73.55
/ea

Key Features

Material
Polycarbonate
Height
7.72 in
Color
Gray
Width
2.68 in
Number of Holes
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALD05H7
Zoro #
G0451902
UPC #
785901115014
Country of Origin
Czechia

Dimensions

Height
7.72 in
Width
2.68 in
Depth
2 in
Conduit Size
1/2 in
Hole Size
22 mm
Dimensions
7.72 in H x 2.68 in W x 2.00 in D
Panel Cutout Diameter
22 mm
Overall Height
7 3/4 in
Overall Depth
2 in
Compatible Conduit Size - Maximum
14 mm
Overall Width
2 11/16 in

Details

Item
Push Button Enclosure
Material
Polycarbonate
Color
Gray
Number of Holes
5
For Use With
ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head
NEMA Rating
1, 12, 13, 4X
Number of Columns
1
Standards
RoHS
Colour Of Cover
dark grey RAL 7016)
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
XALD
Electrical Composition Code
SR1 || MF1 || MF2 || SR2 || SF1 || PF1 || PF2 || SF2 || MR1 || PR1
Product Or Component Type
empty control station
Ambient Air Temperature For Operation
-40-70°C
Group Of Product
UL-CSA grey
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Ik Degree Of Protection
IK03 EN 50102
Protective Treatment
TH
Number Of Cut-Out
5 cut-outs
Colour Of Base Of Enclosure
light grey RAL 7035)
Main Group
5 cut-outs
Mounting Of Block
front mounting || rear mounting
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category
class II IEC 60536
Number Of Horizontal Rows
1
Product Destination
for XB5 Ø 22 mm control and signalling units
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
CSA || UL
Ambient Air Temperature For Storage
-40-70°C
Number Of Vertical Rows
5
Assembly Style
For customer assembly
Cover Color
Dark Gray RAL 7016)
Enclosure Base Cover
Light Gray RAL 7035)
Compatible with Series
XB5
NEMA Enclosure Rating
13, 4X

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 5, NEMA Rating 1, 12, 13, 4X, Conduit Size 1/2 in, Dimensions 7.72 in H x 2.68 in W x 2.00 in D, Hole Size 22 mm, Material Polycarbonate, Height 7.72 in, Width 2.68 in, Depth 2 in, Color Gray, For Use With ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head, Standards RoHS
