Schneider Electric

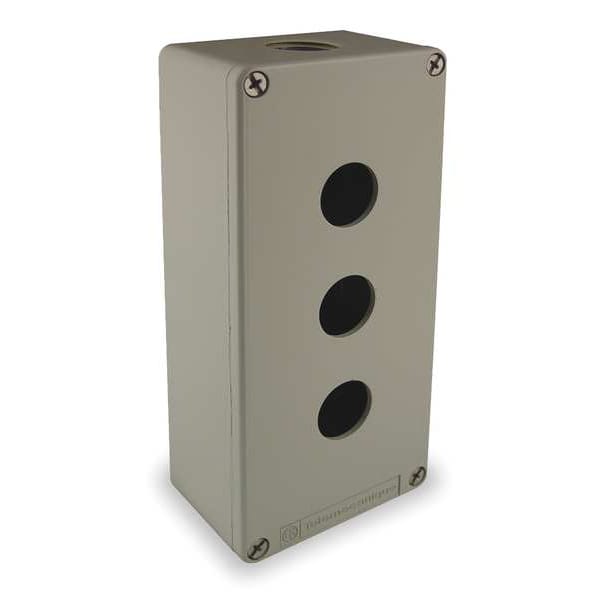

Pushbutton Enclosure, 22mm, Metal

original price: $124.99
5% off
new price: $117.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Columns 1
  • Hole Size 22 mm
  • Material Die Cast Zinc
  • Conduit Size 3/4 in
  • Number of Holes 3
See all product information

Product Information

Dimensions

Hole Size 22 mm
Conduit Size 3/4 in
Dimensions 3.03 in H x 3.15 in W x 6.90 in D
Height 3.03 in
Width 3.15 in
Depth 6.9 in
Contact Block Depth 2.93 in
Cad Overall Width 80 mm
Cad Overall Depth 77 mm
Cut-Out Dimensions Ø 22 mm
Cad Overall Height 175 mm
Overall Height 6 7/8 in
Overall Depth 3 1/16 in
Compatible Contact Block Depth 2.93 in
Overall Width 3 1/8 in
Panel Cutout Diameter 22 mm
Compatible Conduit Size - Maximum 3/4 in

Details

Number of Columns 1
Item Push Button Enclosure
Material Die Cast Zinc
Number of Holes 3
NEMA Rating 13, 4
Cable Entry cable gland || 1 x cable gland
Color Gray
Standards RoHS
Product Destination for Ø 22 mm control and signalling units
Ip Degree Of Protection IP65 IEC 60529
Colour Of Base Of Enclosure grey RAL 7032)
Number Of Cut-Out 3 cut-outs
Ambient Air Temperature For Operation -25-70°C
Resistance To Chemical Agents special treatment can be obtained on request
Colour Of Cover grey RAL 7032)
Number Of Horizontal Rows 3
Ik Degree Of Protection IK07 EN/IEC 62262
Number Of Vertical Rows 1
Protective Treatment TH
Electrical Shock Protection Class class I IEC 60536 || class I NF C 20-030
Device Short Name XAPG
Compatibility Code XAPG
Product Or Component Type die-cast empty control station
Ambient Air Temperature For Storage -40-70°C
Control Station Type metal
Thread Type 3/4 NPT
Compatible with Series XB4
NEMA Enclosure Rating 13, 4

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 3, NEMA Rating 13, 4, Conduit Size 3/4 in, Dimensions 3.03 in H x 3.15 in W x 6.90 in D, Hole Size 22 mm, Material Die Cast Zinc, Height 3.03 in, Width 3.15 in, Depth 6.9 in, Color Gray, Contact Block Depth 2.93 in, Standards RoHS
