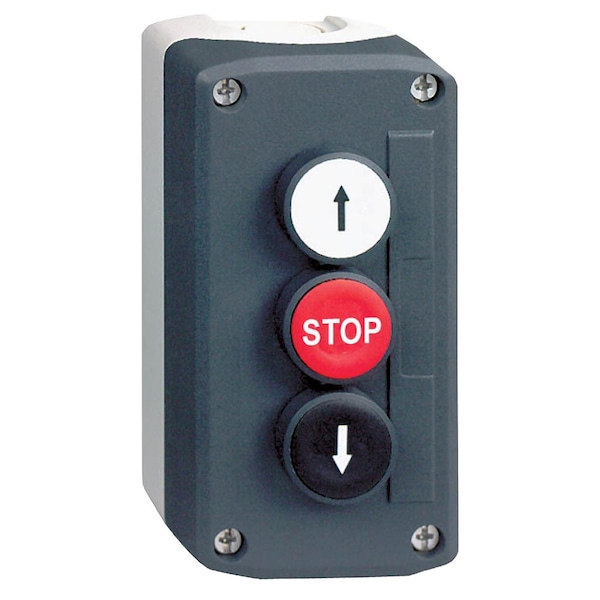

Schneider Electric Station XALD326H7 - main

Station

  • Mfr # XALD326H7

  • Zoro # G0861458

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
Marking Location
marking on push-button
Product Destination
for XB5 Ø 22 mm control and signalling units
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALD326H7
Zoro #
G0861458
UPC #
785901923367
Country of Origin
France

Details

Item
Control Station
Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
Marking Location
marking on push-button
Product Destination
for XB5 Ø 22 mm control and signalling units
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of Protection
IK03 EN 50102
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Electrical Shock Protection Class
class II IEC 60536
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Colour Of Base Of Enclosure
light grey RAL 7035)
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
Colour Of Cover
dark grey RAL 7016)
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Product Certifications
CSA || UL Listed
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Control Station Composition
1 flush push-button, black 1 NO, white down arrow || 1 flush push-button, white 1 NO, black up arrow || 1 flush push-button, red 1 NC STOP
Protective Treatment
TH
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K || IP67
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operators Description
white ''up arrow'' 1 NO - red ''STOP'' 1 NC - black ''down arrow'' 1 NO
Contacts Material
silver alloy (Ag/Ni)
Mechanical Durability
5000000 cycles
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Device Short Name
XALD
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operator Profile
3 flush push-buttons
Control Station Application
three functions
Product Or Component Type
complete control station
Contact Operation
slow-break
Positive Opening
with EN/IEC 60947-5-1 appendix K
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Product Type
Control Station

Description

Control Station
