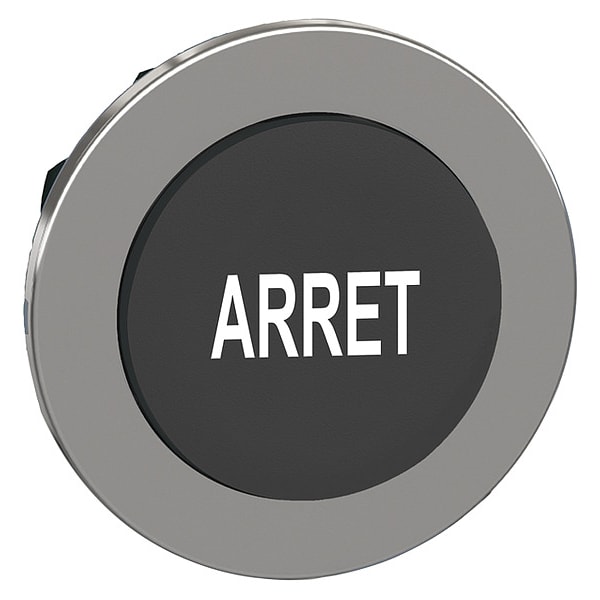

Pushbutton Head, 30 mm, Black

Push Button Operator

Extended

Momentary

Non-Illuminated

Black

Metal

CCC, CE, Class I IEC 60536, CSA C22.2 No.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, Type 12 UL 50E, Type 13 UL 50E, Type 4 UL 50E, Type 4X UL 50E, UL 508

1

XB4

Metal

Black

Metal

White/Black

Arret

Visually Distinct at a Distance, Snap-Fit Assembly, Withstands Harsh Environments

IP66, IP67, IP69, IP69K

Push Button Operators

Black

Not Rated

Metal

158 Degrees F

Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

-40 Degrees F

White

1, 12, 13, 2, 3, 4, 4X

0

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

ZB4F

spring return

5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6

UL Listed || CSA || CCC || EAC

IK06 IEC 50102

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

black projecting, ARRET white)

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

-40-70°C

basic element

built-in-flush

round

head for non-illuminated push-button

10000000 cycles

-40-70°C

class I IEC 60536

TH
