  13. Pushbutton Head, 30 mm, Red, White
Shop All Push Button Switches
Schneider Electric

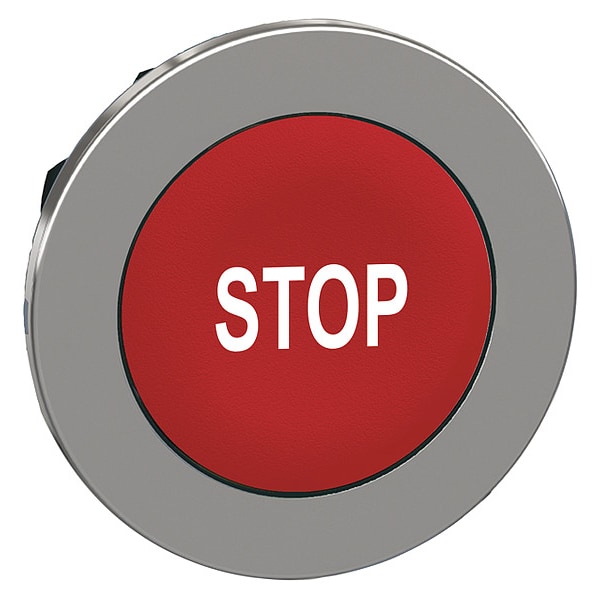

Pushbutton Head, 30 mm, Red, White

product price: $12.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • For Use With Body Sub-assembly ZB4BZ Series
  • Legend Stop
  • Head Material Metal
  • Color Red, White
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30.5 mm
Cad Overall Height 36.6 mm
Cad Overall Width 36.6 mm
Cad Overall Depth 31 mm
Manufacturer Warranty Length 18 mo
Overall Height 1.44 in
Overall Depth 1.22 in
Panel Cutout Diameter 30 mm
Overall Width 1.44 in

Details

Item Push Button Head
For Use With Body Sub-assembly ZB4BZ Series
Legend Stop
Head Material Metal
Color Red, White
Legend/Background Color White/Red
Bezel Material chromium plated metal
IP Rating IP66, IP67, IP69, IP69K
Connection Type Screw-On
Basic Material Metal
Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Illuminated / Non-Illuminated Non-Illuminated
Product Certifications UL Listed || CSA || CCC || EAC
Head Type built-in-flush
Ambient Air Temperature For Storage -40-70°C
Device Short Name ZB4F
Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head round
Operator Profile red flush, STOP white)
Protective Treatment TH
Device Presentation basic element
Ik Degree Of Protection IK06 IEC 50102
Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Ambient Air Temperature For Operation -40-70°C
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Overvoltage Category class I IEC 60536
Type Of Operator spring return
Product Or Component Type head for non-illuminated push-button
Mechanical Durability 10000000 cycles
Compatible with Brand Schneider
Compatible Operator Illumination Non-Illuminated
Head Color Red
Head Style Flush
Legend Color White
NEMA Enclosure Rating 13, 4, 4X
Compatible with Series XB4

Description

Push Button Head, Color Red, White, For Use With Body Sub-assembly ZB4BZ Series, Size 30 mm, Basic Material Metal, Non-Illuminated, Head Material Metal, Connection Type Screw-On, IP Rating IP66, IP67, IP69, IP69K, Legend Stop, Legend/Background Color White/Red, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
