  13. Relay, Side Flange, 1.4VA, DPDT, 24VDC

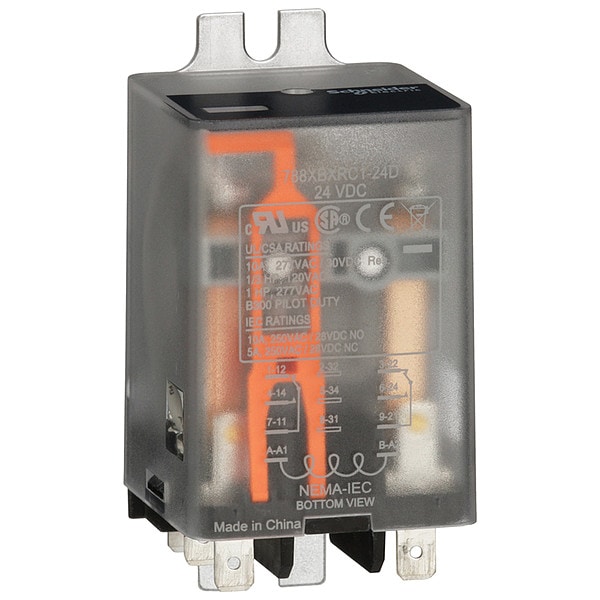

Schneider Electric Relay, Side Flange, 1.4VA, DPDT, 24VDC 788XBXRC1-24D - main

Relay, Side Flange, 1.4VA, DPDT, 24VDC

  • Mfr # 788XBXRC1-24D

  • Zoro # G0318109

product price: $12.15
/ea

Key Features

AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Mounting - Relay
Side Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XBXRC1-24D
Zoro #
G0318109
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.75 in
Body Depth - Relay
1.4 in
Body Height - Relay
2.75 in
Body Width - Relay
1.37 in
Overall Depth
2.77 in
Body Width
1.38 in
Body Height
1.4 in
Body Depth
1.9 in
Flat Pin Width
0.189 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)
Height
2.77 in (70.3 mm)

Details

Item
Flange Mount Relay
Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Mounting - Relay
Side Flange
Power Consumption - Relay
1.4 W
Contact Material
Silver Alloy
HP @ 120V
1/3 hp
Item - Relay
Flange Mount Relay
Contact Form
DPDT
Electrical Connection
Blade Terminal
Contact Rating
10A @ 277VAC/30VDC
Pins
8
Standards
CE Certified, CSA Certified, EAC, UL Listed
Mounting
Side
Status Indicator
Mechanical Flag
Coil Voltage
24V DC
Minimum Operating Temperature
-40 Degrees F
Response Time
20 msec
Pin Shape
Flat
Horsepower @ 120V AC
1/3 hp
Power Consumption
1.4 W
Weight
2.93 oz
IP Rating
IP40
Motor Rated
Yes
Coil Resistance
470 ohm
Input Voltage
24V DC
Mechanical Operating Durability
5,000,000
Number of Pins
8
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Minimum Switching Current
10 mA
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Switching Voltage
250V, 300V
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Electrical Operating Durability
100,000
Series
788R Series
Maximum Operating Temperature
131 Degrees F
Mounting Style
Side Flange
Base Shape
Square
Current Rating
10 A
Sealing
Enclosed
Contact Rating (DC)
10 A @ 28V
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1 (NC)
Shock Resistance
10 gn
Product Type
Plug-in electromechanical relay
Contacts Material
Silver alloy, gold flashed
Product Certifications
UL; CSA; CE; EAC
[Ue] rated operational voltage
24 V DC
Operating Time
20 ms
Contact Composition
2 NC + 2 NO
Control Circuit Voltage Limits
0.8...1.1 Un DC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Mounting Support
plug-in; Side flange
Rated Operational Current
10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Mechanical Durability
5000000 cycles
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Local Signalling
Flag
Electrical Durability
100000 cycles
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)

Description

Flange Mount Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Mounting Style Side Flange, Body Depth 1.9 in, Body Height 1.4 in, Body Width 1.38 in, Coil Resistance 470 ohm
