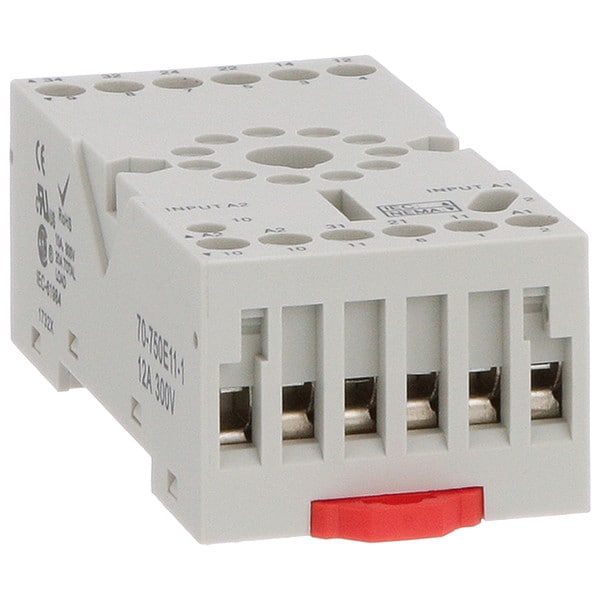

Schneider Electric Relay Socket, Elevator, Octal, 11 Pin 70-750E11-1 - main

Relay Socket, Elevator, Octal, 11 Pin

  • Mfr # 70-750E11-1

  • Zoro # G0865645

product price: $8.35
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Finger Safe, Standard
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-750E11-1
Zoro #
G0865645
UPC #
-
Country of Origin
China

Dimensions

Depth
2.24 in
Length
2.95"
Width
1.5 in
Width - Relay Socket
1.49 in
Height - Relay Socket
1.06 in
Depth - Relay Socket
2.95 in
Height
1.06 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Finger Safe, Standard
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
11
Socket Code
B
Contact Rating - Relay Socket
12A @ 300V AC
Color
White
Standards
CE Certified, CSA Certified, UL Listed
Socket Type
Standard, Finger Safe
Terminals
Screw Clamp
Item
Relay Socket
Voltage
300VAC
Contact Rating
12A @ 300VAC
Number of Pins
11
Socket Style
Octal
Mounting
Din Rail
Status Indicator
None
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
12 A @ 300V
Number of Terminals
11
Compatible Relays
750R Series
Maximum Operating Temperature
131 Degrees F
IP Rating
IP20
Base Style
Octal
Mounting Style
DIN Rail
Weight
3 oz
Current Rating
12 A
Contact Form
3PDT
Pin Shape
Round
Electrical Connection
Screw Clamp
Contact Terminal Arrangement
Separate
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
Fixing Mode
By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail
Connections Terminals
Panel lift terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 flexible with cable end
Shape of Screw Head
Combination roundhead
Tightening Torque
< 0.8 N.m
Product Type
Socket
Product Certifications
UL; CSA; CE
[Ue] rated operational voltage
300 V
Contact Composition
3 NO + 3 NC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Compatibility
relay 750XCXR; relay 750XCXH; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR; jumper wire 16-750CBJ-1
Flame Retardance
UL94-V0
Product Range
Legacy

Description

Relay Socket, Base Style Octal, Contact Form 3PDT, Current Rating 12 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 11, Number of Terminals 11, Pin Shape Round, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 750R Series, Contact Rating (AC) 12 A @ 300V, Depth 2.24 in, Height 1.06 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
