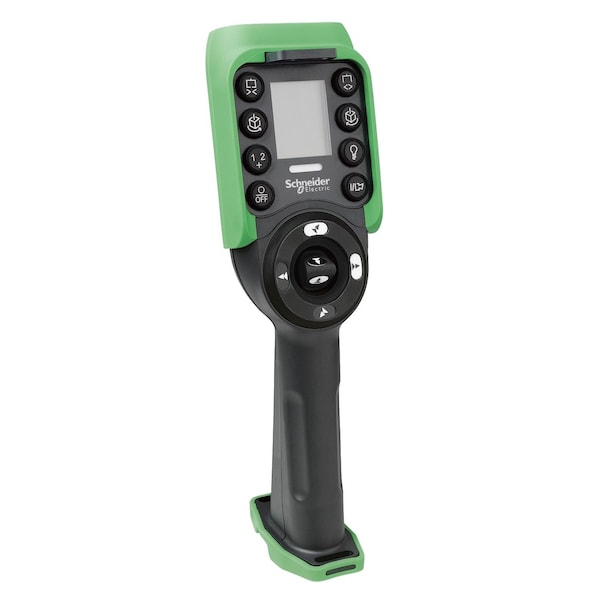

Schneider Electric Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons ZART12D - main

Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons

  • Mfr # ZART12D

  • Zoro # G7655044

product price: $783.99
/ea
Free Shipping & Returns

Key Features

Material
enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate), Cover PP (polypropylene), protective cover EPDM rubber
Height
340 mm
Width
100 mm
Standards
C-tick, CSA, CE, JIS, KC, EAC, UL
Depth
90 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZART12D
Zoro #
G7655044
UPC #
-
Country of Origin
France

Dimensions

Height
340 mm
Width
100 mm
Depth
90 mm

Details

Item
Remote 6 Motion 6 Aux Pushbuttons With D
Material
enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate), Cover PP (polypropylene), protective cover EPDM rubber
Standards
C-tick, CSA, CE, JIS, KC, EAC, UL
Ip Degree of Protection
IP65
Ambient Air Temperature For Operation
-20-60°C
Autonomy
30 h
Function Available
accelerometer function, vibrator function
Ambient Air Temperature For Storage
-20-45°C
Response Time
< 300 ms full duplex
Shock Resistance
100 gn IEC 60068-2-27
Product or Component Type
hand-held remote control
Radio Agreement
FCC, ARIB, RSS, ICASA, ANATEL, SRRC
Operating Altitude
0...6561.68 ft (0...2000 m)
Maximum Sensing Distance
100 m in free field
Range of Product
Harmony eXLhoist
Charging Time
900 s
Relative Humidity
0-95 % -20-60°C operating
Device Short Name
ZART
Operating Distance
50 m
Transmission Frequency
2.4 GHz
Storage Altitude
0-3000 m
Communication Network Type
wireless bluetooth low energy
Vibration Resistance
0.075 mm 10-55 Hz)IEC 60068-2-6
Control Button Type
6 configurable motion push-button, 6 configurable auxiliary push-button
Nema Degree of Protection
NEMA 4
Mechanical Durability
5000000 cycles
Mechanical Robustness
free fall resistance 4.5 m IEC 60068-2-27
Service Life
5 year(s)
Display Type
LCD display 34 x 42 mm
Product Or Component Type
hand-held remote control
Ip Degree Of Protection
IP65
Product Certifications
C-tick || CSA || CE || JIS || KC || EAC || UL
Nema Degree Of Protection
NEMA 4

Description

Remote 6 Motion 6 Aux Pushbuttons With D
